📊 Coordinate Systems Explained

3D Model Space (X, Y, Z):

• X = Left/Right
• Y = Forward/Backward
• Z = Up/Down
• Your model exists here in 3D world

2D Texture Space (U, V):

• U = Horizontal (like X, but for 2D images)
• V = Vertical (like Y, but for 2D images)
• Range: 0.0 to 1.0 (covers entire image)
• Your texture image exists here in 2D space

Why U and V instead of X and Y? To avoid confusion with 3D coordinates! U and V are specifically for 2D texture space.

🔲 UV Space Layout

• Bottom-left corner: U=0.0, V=0.0
• Bottom-right corner: U=1.0, V=0.0
• Top-left corner: U=0.0, V=1.0
• Top-right corner: U=1.0, V=1.0
• Center: U=0.5, V=0.5

Key insight: UV coordinates are normalized (0-1 range) regardless of actual texture resolution. Whether your texture is 512×512 or 4096×4096, UV space is always 0-1!

🎯 UV Mapping Process

1. Each vertex has 3D coordinates: Position in world (X, Y, Z)
2. Each vertex also has UV coordinates: Position in texture space (U, V)
3. When rendering: Blender looks up UV coordinates for each surface point
4. Samples texture at that UV location: Gets color from texture image
5. Applies color to 3D surface: Your textured model appears!

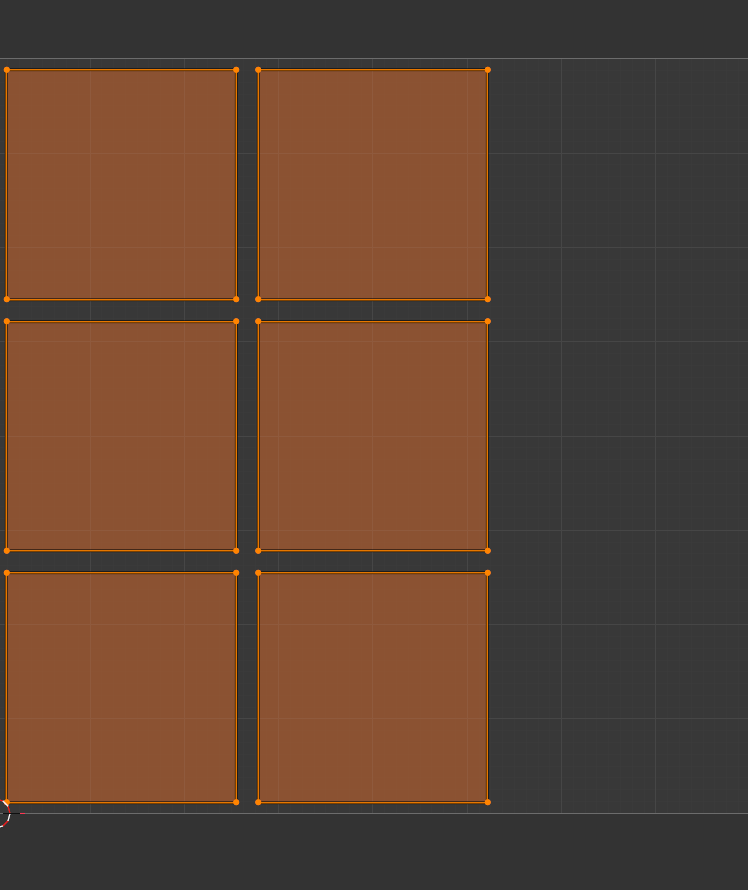

🏝️ UV Islands Explained

What is a UV island?

• A continuous, connected piece of your unwrapped mesh
• No breaks or seams within the island
• Like a single piece of flattened fabric

Why multiple islands?

• Complex 3D shapes can't unwrap as one flat piece without distortion
• Need to "cut" the mesh to flatten it
• Each cut creates new islands
• Trade-off: More islands = less distortion, but more seams to hide

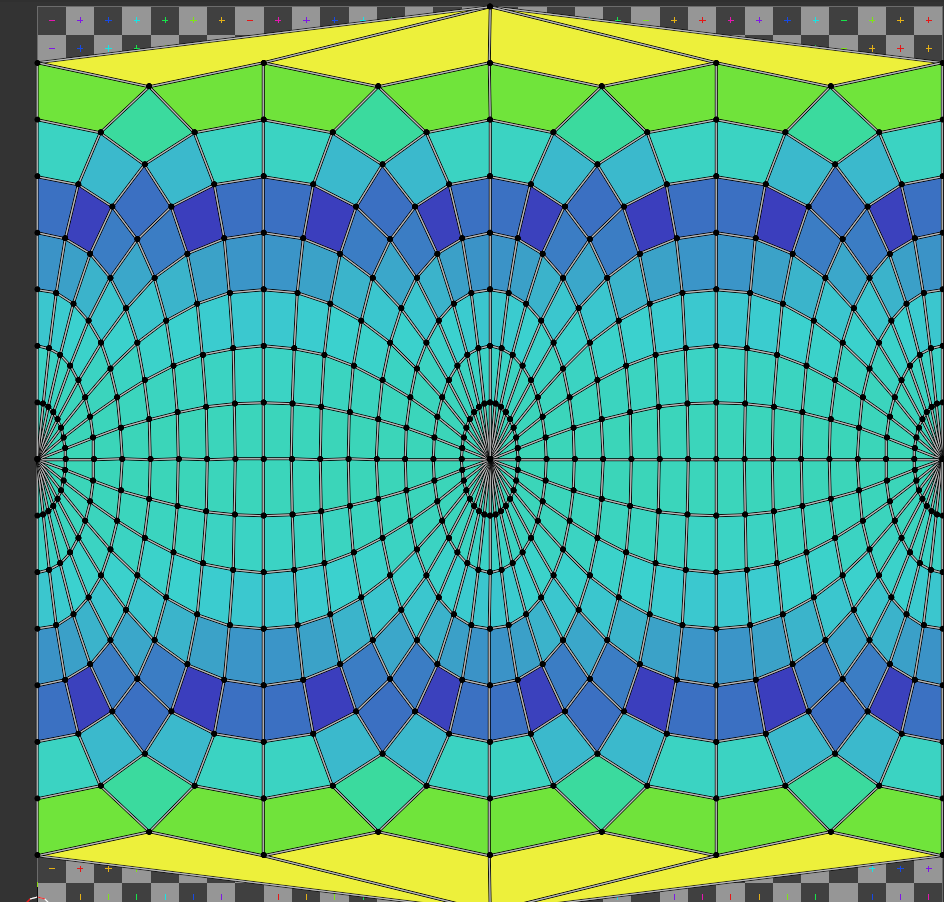

⚠️ The Distortion Problem

You're trying to flatten a 3D surface into 2D space. This is mathematically impossible without some distortion—just like trying to flatten an orange peel perfectly flat!

Types of distortion:

• Stretching: Some areas get elongated
• Compression: Some areas get squished
• Shearing: Some areas get skewed

UV unwrapping skill = minimizing distortion through smart seam placement!

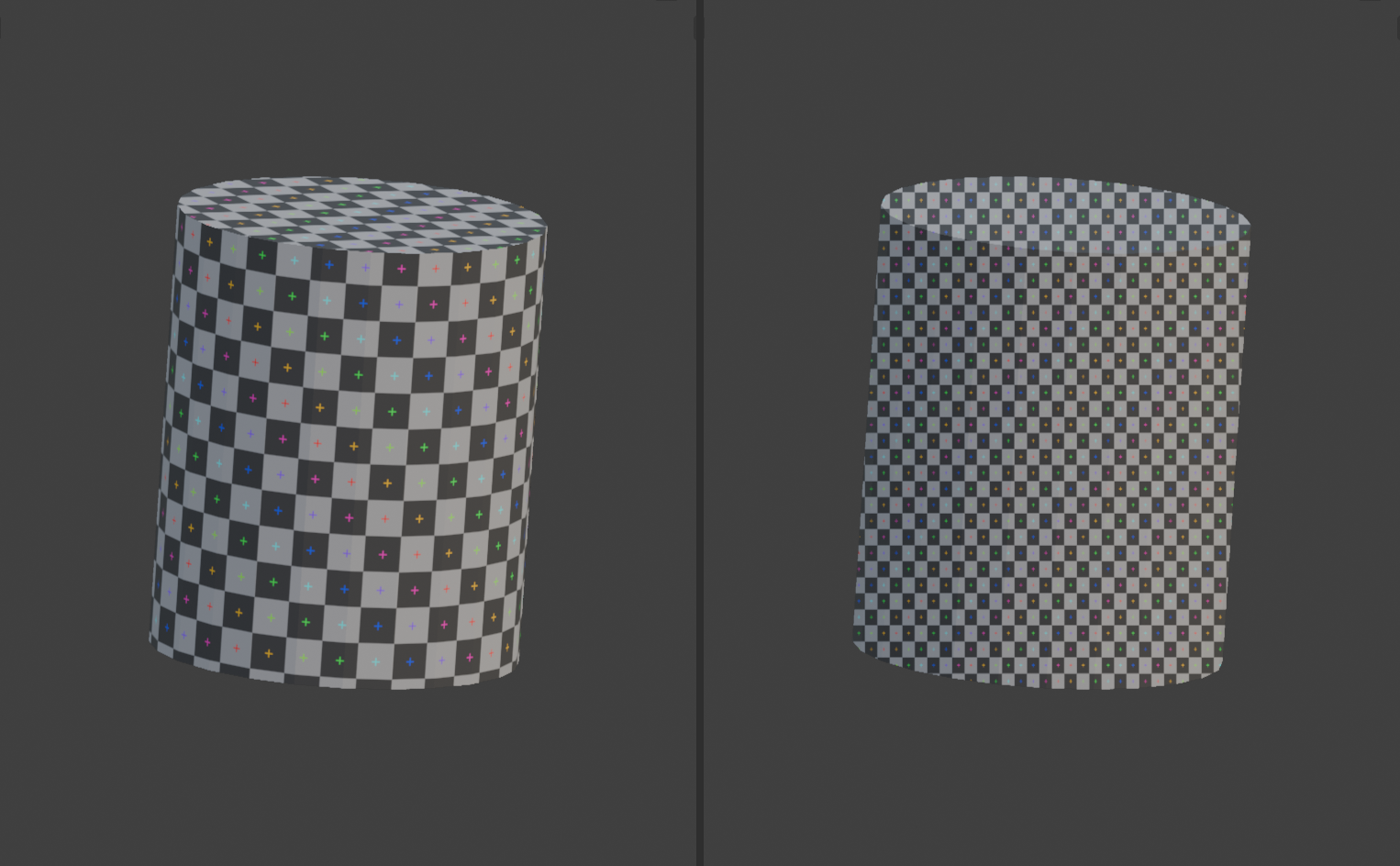

✅ Characteristics of Good Unwraps

• Minimal distortion: Square textures look square on the model
• Even texel density: Texture resolution consistent across model
• Efficient packing: UVs use available texture space well
• Smart seam placement: Seams hidden in natural breaks or obscured areas
• Logical layout: Similar geometry pieces grouped together
• Ease of painting: Artist can paint textures intuitively

❌ Signs of Bad Unwraps

• Extreme stretching: Checker pattern warped beyond recognition
• Overlapping UVs: Multiple faces using same texture space
• Wasted space: Large empty areas in UV layout
• Tiny islands: Some pieces too small to texture effectively
• Visible seams: Cuts in obvious, high-visibility areas
• Inconsistent scale: Head gets 50% of texture, body gets 5%

📝 Accessing UV Editor

Method 1: UV Editing Workspace (Recommended)

1. Click the "UV Editing" tab at the top of Blender
2. Screen splits automatically: 3D Viewport (right) + UV Editor (left)
3. Perfect layout for UV work!

Method 2: Change Any Editor to UV Editor

1. Click editor type icon (overlapping squares) in any editor corner
2. Select "UV Editor" from dropdown
3. That editor becomes UV Editor

Method 3: Split Screen Manually

1. Drag from corner of viewport to split screen
2. Change new editor to UV Editor
3. Arrange as needed

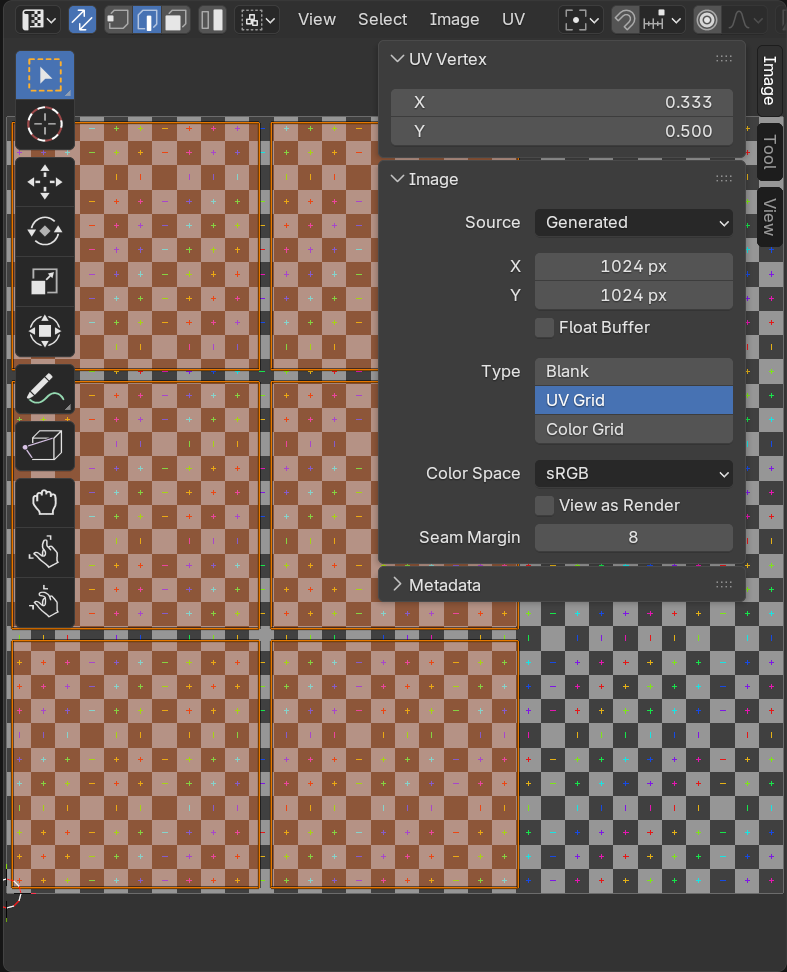

🎨 UV Editor Components

Main Canvas (the grid):

• Represents UV space (0-1 range in both directions)
• Your unwrapped UVs appear here
• Background can show texture image for reference

Header (Top Bar):

• View controls: Zoom, pan, frame options
• Select mode: Vertex, Edge, Face selection
• UV menu: Unwrap, pack, align tools
• Image selector: Choose which texture to display

Sidebar (N key to toggle):

• Tool tab: Active tool settings
• View tab: Display options, overlays
• Image tab: Texture properties

🎮 UV Editor Navigation

🎯 UV Selection Modes

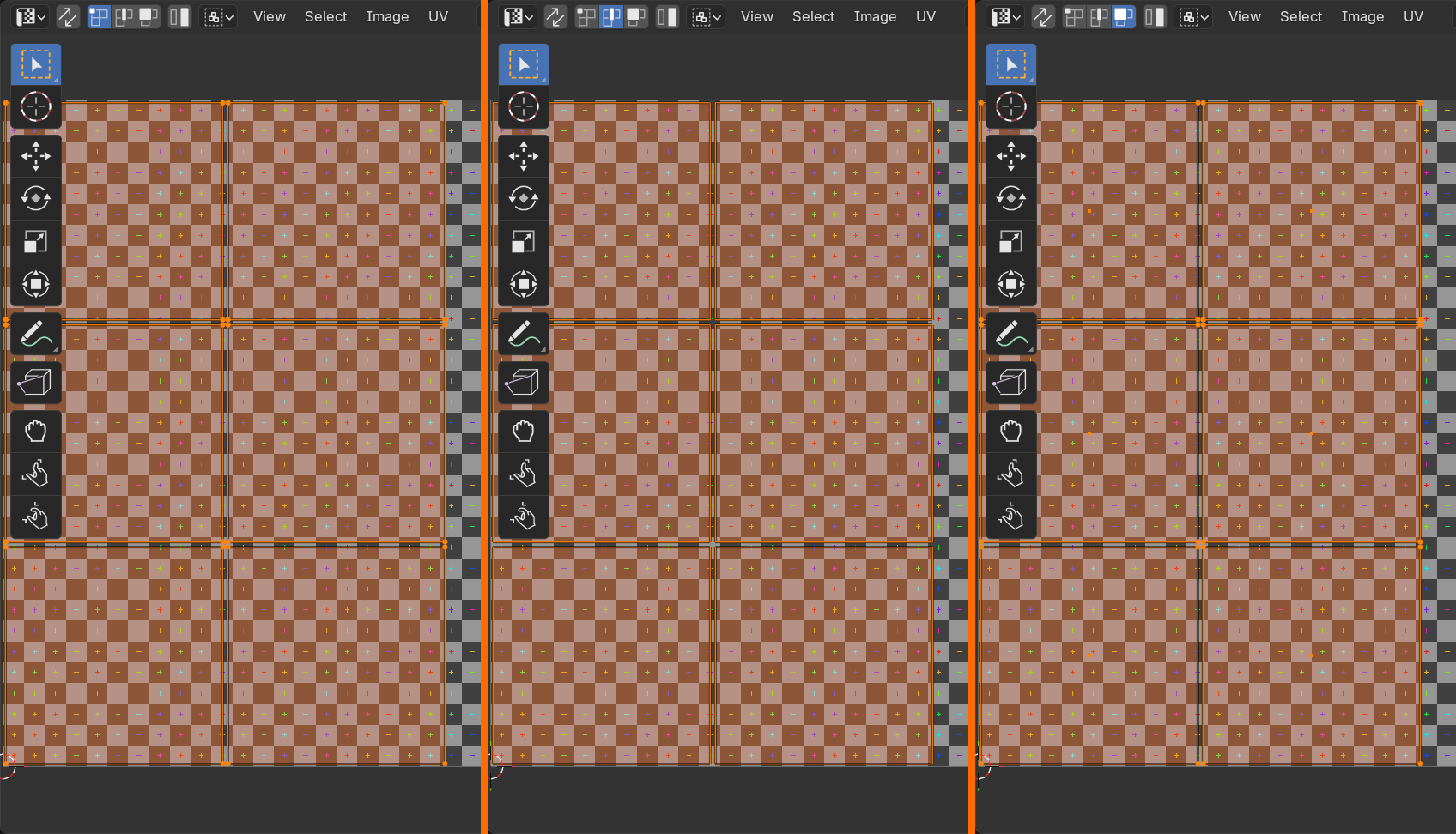

Vertex Select Mode (1 key):

• Select individual UV points
• Precise control for adjustments
• Good for: Fine-tuning, aligning specific points

Edge Select Mode (2 key):

• Select UV edges
• Useful for seam marking and edge alignment
• Good for: Straightening edges, marking seams

Face Select Mode (3 key):

• Select entire UV faces/islands
• Fastest for moving whole sections
• Good for: Island manipulation, packing, layout

Sync Selection (button in header):

• When ON: UV Editor selection syncs with 3D Viewport
• When OFF: Can select different things in each editor
• Usually keep ON for intuitive workflow

🔧 Essential UV Selection Tools

Box Select (B key):

• Drag box to select multiple UVs
• Left-click to confirm, right-click to cancel
• Fast for selecting regions

Circle Select (C key):

• Paint selection with circular brush
• Scroll wheel to adjust brush size
• Left-click to add, Middle-click to remove
• Esc or right-click to exit

Lasso Select (Ctrl + Right-click + Drag):

• Draw freeform selection shape
• Good for irregular selections

Select Linked (L key with mouse over):

• Hover over UV, press L
• Selects entire connected island
• Incredibly useful for manipulating islands

Select All (A key):

• Toggles between select all / deselect all

🖼️ Working with Texture Display

Loading a texture:

1. In UV Editor header, find image selector dropdown
2. Click "New" to create test image or "Open" to load existing
3. Image appears as background in UV Editor
4. Your UVs overlay the image

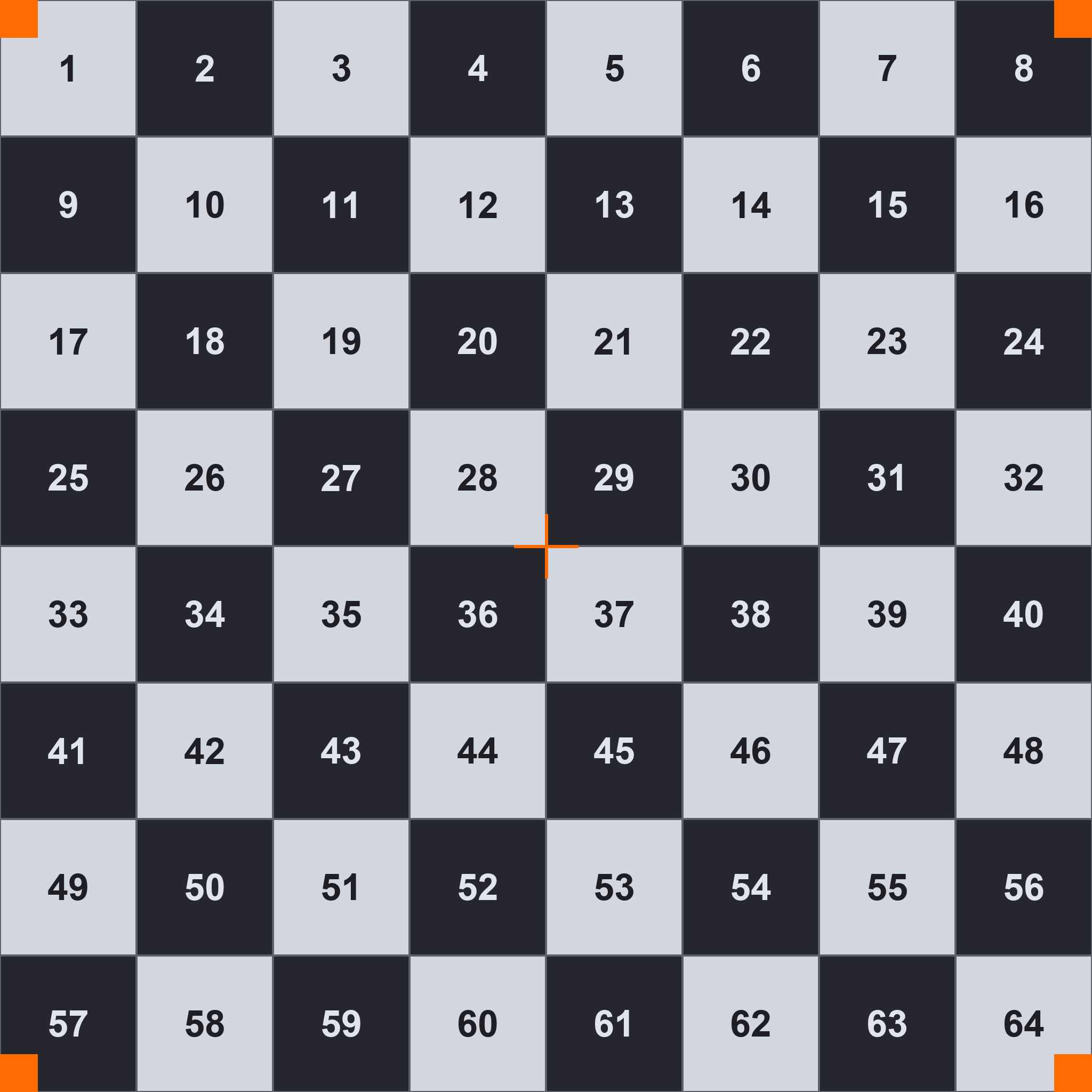

Useful test textures:

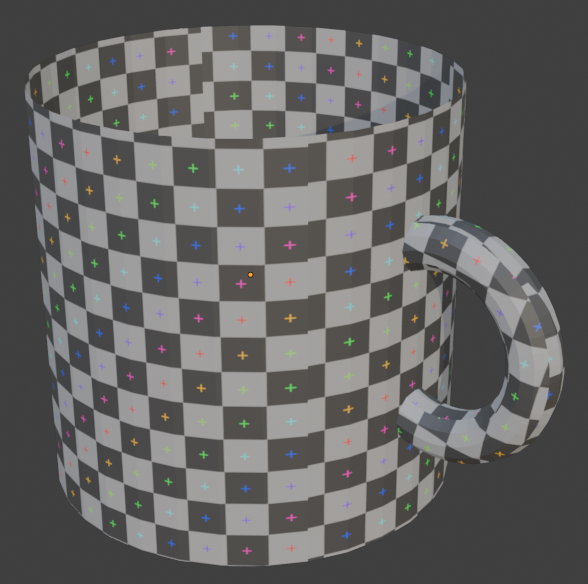

• UV Grid/Checker: Shows stretching and distortion clearly
• Color ID map: Different colors for different islands
• Actual texture: Preview how final texture looks

Creating UV Grid texture:

1. Image → New
2. Name: "UV_Test"
3. Check "UV Grid" option
4. Click OK
5. Perfect for testing distortion!

👁️ Display Settings

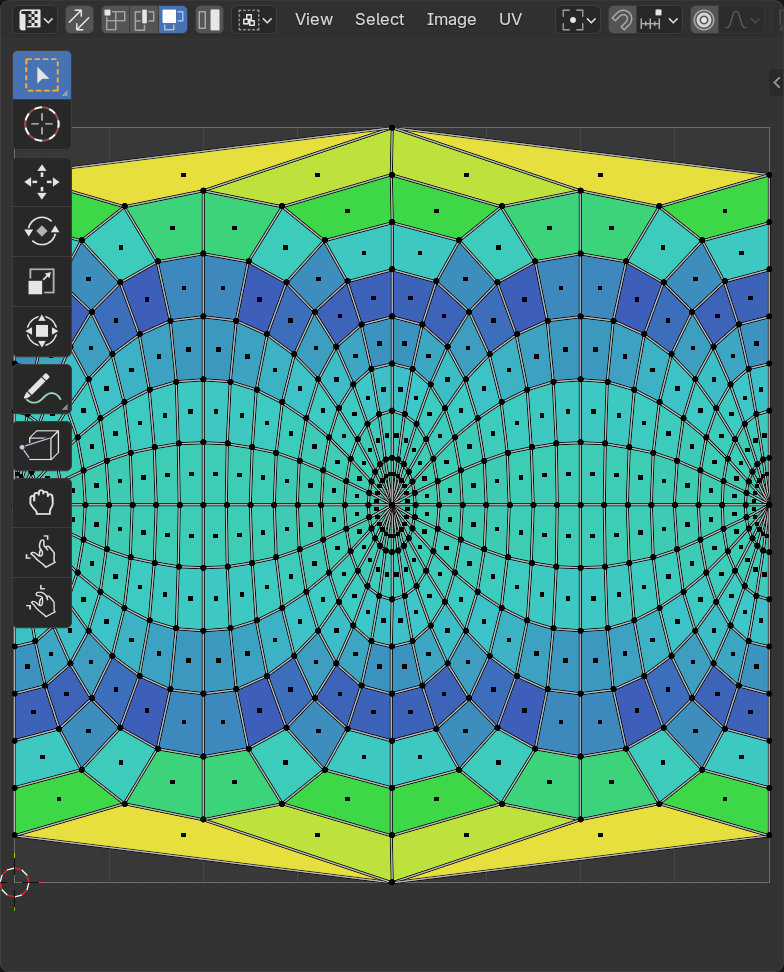

UV Overlay (top-right dropdown in UV Editor):

• Display As: Choose between Outline, Dash, or Black
• Stretch: Shows distortion as colored overlay
  • Blue = compressed areas
  • Green = good, minimal distortion
  • Red/Yellow = stretched areas (problem zones)

Useful overlay toggles:

• Modified Edges: Shows edges that have been modified (orange)
• Image Opacity: Fade texture background to see UVs better
• Grid: Show reference grid over UV space

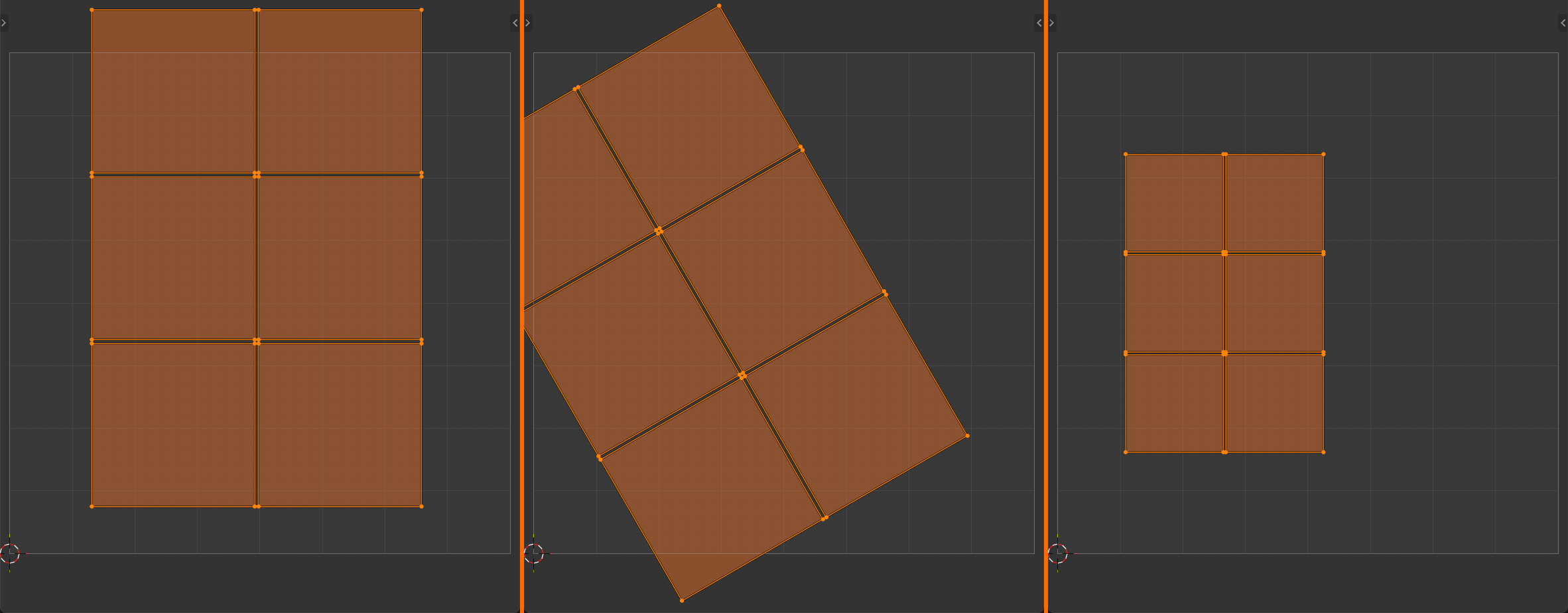

🔧 UV Transformation Tools

Move/Grab (G key):

• Select UVs, press G, move mouse
• G then X or Y to constrain axis
• Type numbers for precise movement

Rotate (R key):

• Select UVs, press R, move mouse to rotate
• Type angle in degrees (e.g., "90" for 90°)

Scale (S key):

• Select UVs, press S, move mouse to scale
• S then X or Y to scale on one axis
• Type scale factor (e.g., "2" for double size)

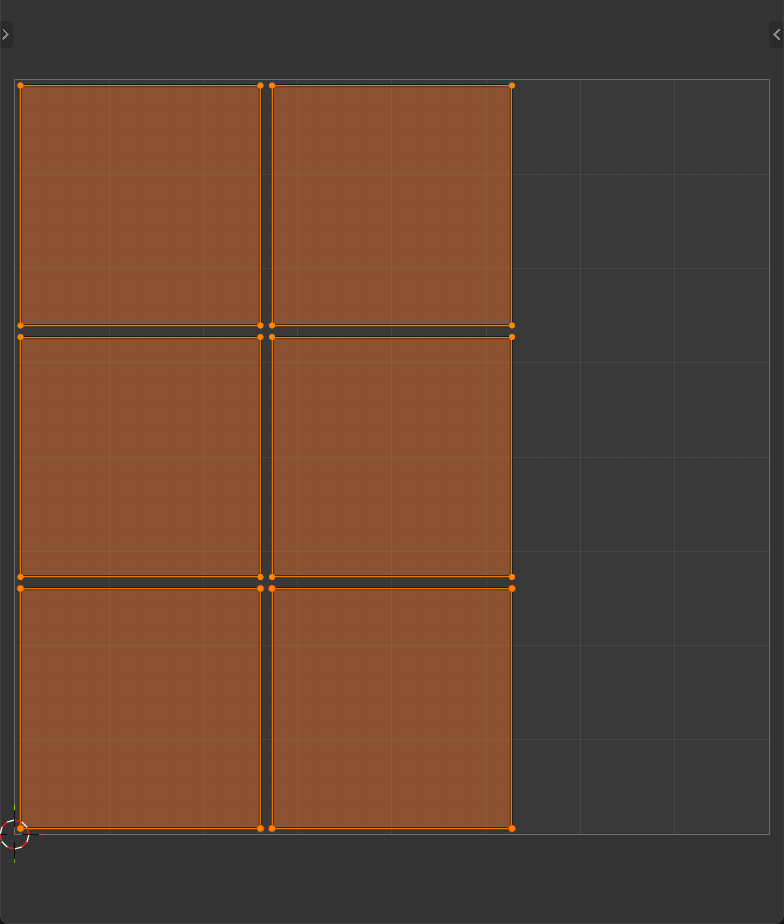

Pin UVs (P key):

• Selected UVs won't move during unwrap operations
• Useful for locking corners or specific points
• Alt+P to unpin

📋 Essential UV Menu Operations

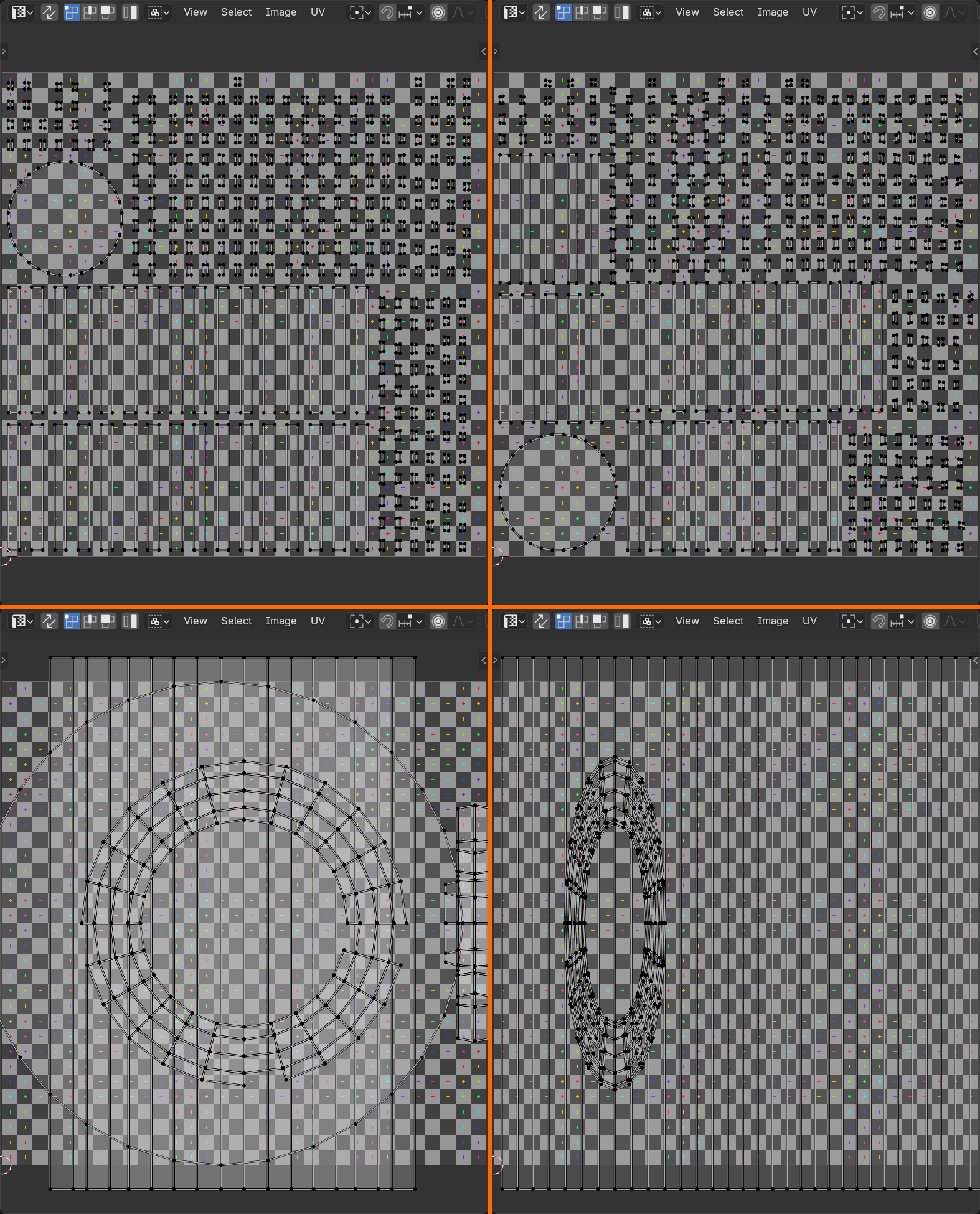

Unwrap (U key):

• Main unwrap operation (we'll cover in detail later)
• Uses marked seams to flatten model

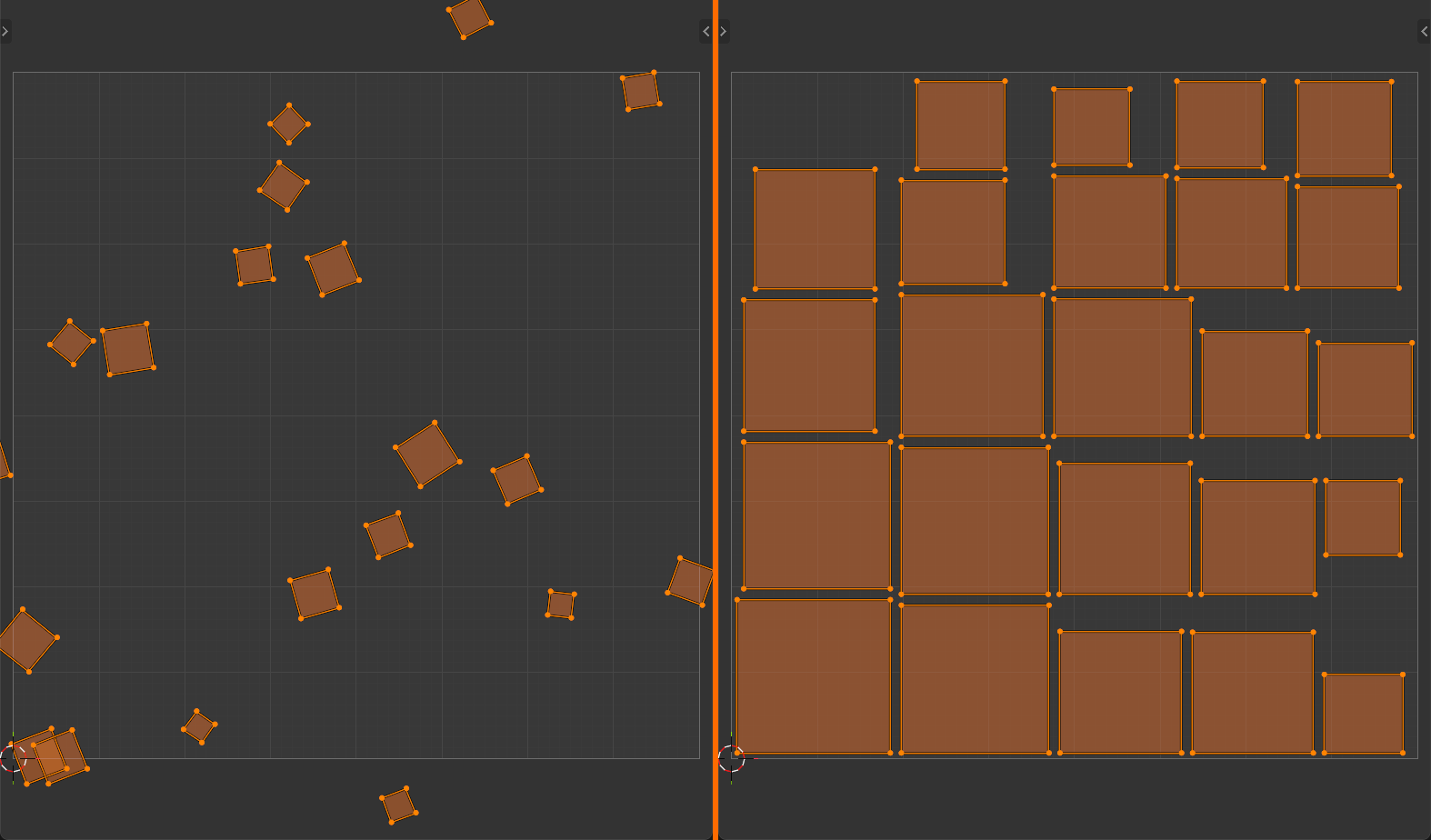

Pack Islands:

• Automatically arranges UV islands efficiently
• Maximizes texture space usage
• Rotates islands to fit better

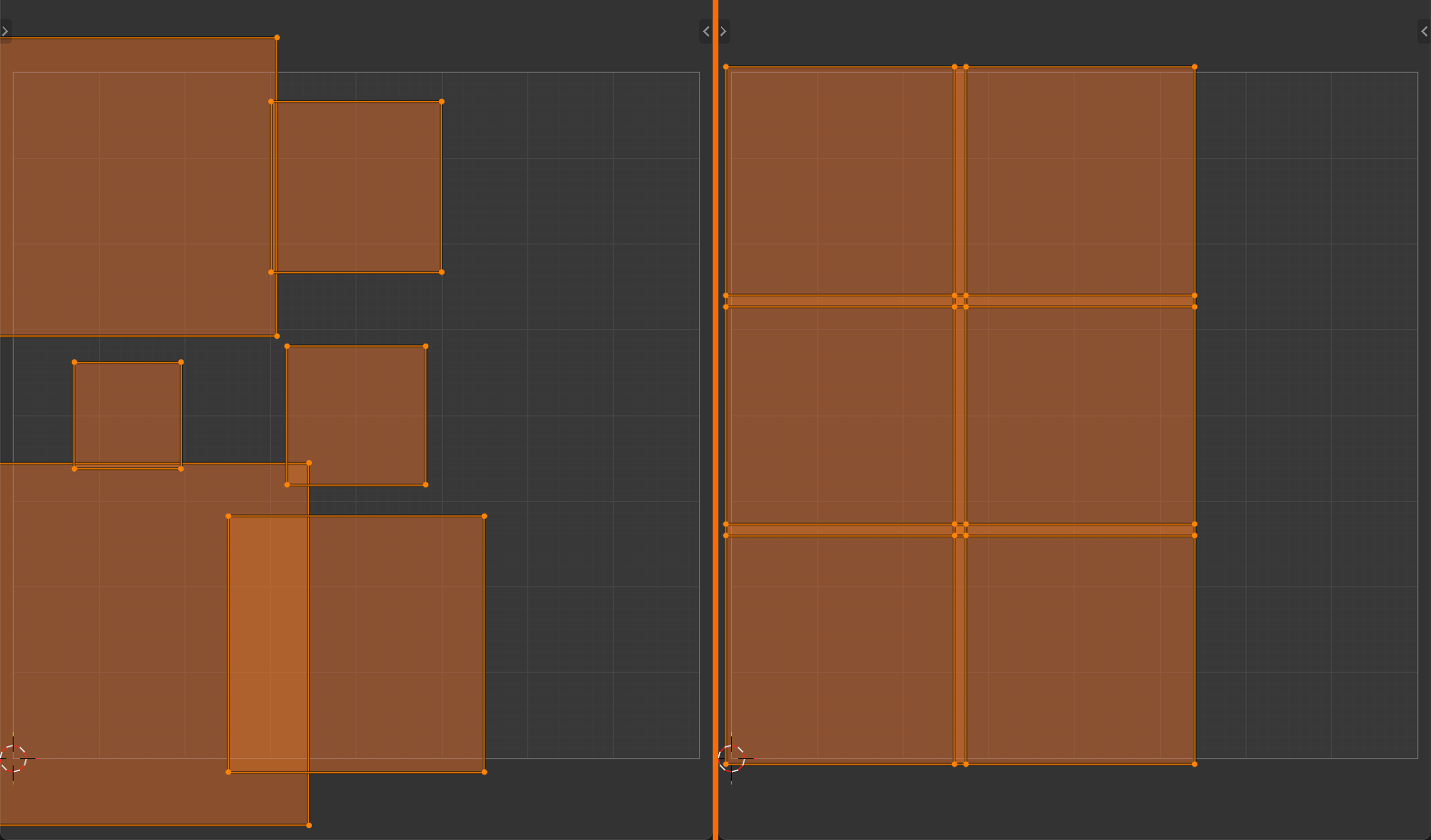

Average Islands Scale:

• Makes all islands have consistent texel density
• Ensures uniform texture resolution across model
• Use after unwrapping, before packing

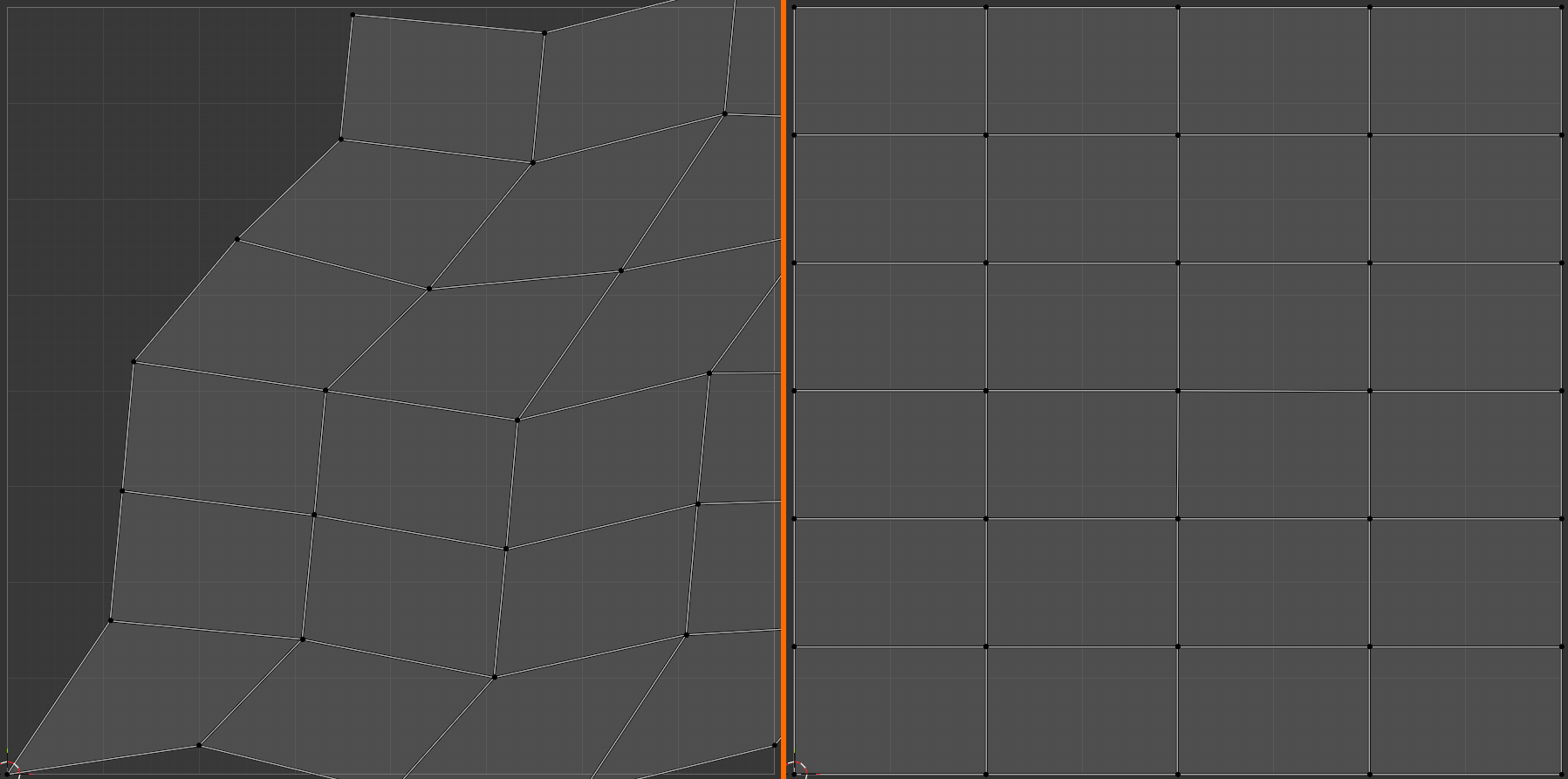

Align:

• Align selected UVs to axes
• Straighten edges
• Align islands to grid

Stitch (V key):

• Merge selected UV vertices together
• Useful for fixing seams or connecting islands

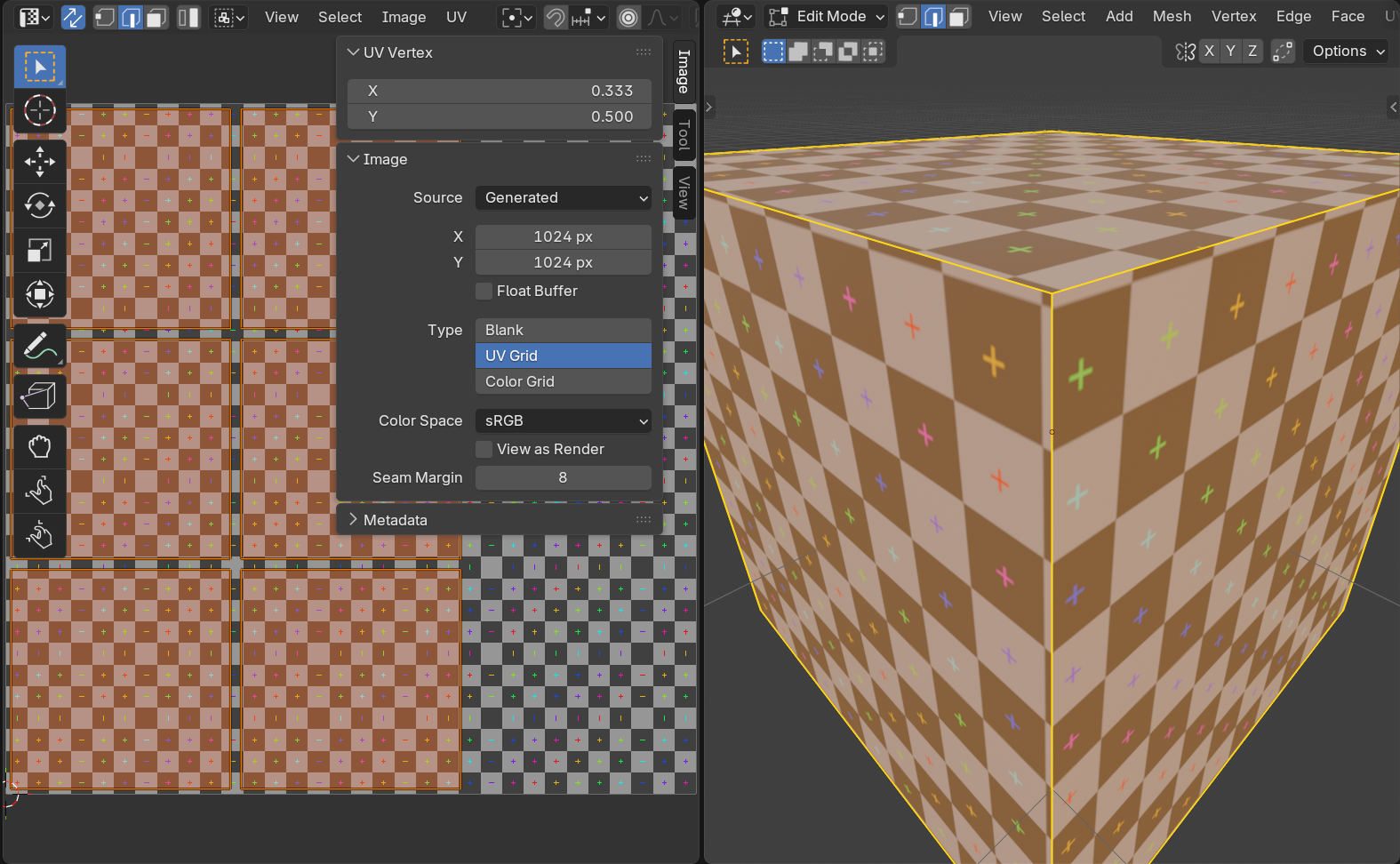

✅ Recommended UV Workspace Setup

1. Switch to UV Editing workspace (tab at top)
2. In 3D Viewport (right side):
   • Set to Edit Mode (Tab)
   • Turn on "X-Ray" mode (Alt+Z) to see through model
   • Enable face selection mode (3)
3. In UV Editor (left side):
   • Load a UV Grid test texture (Image → New → UV Grid)
   • Turn on Stretch overlay to see distortion
   • Enable Sync Selection
4. Select your model in 3D Viewport
5. You're ready to unwrap!

⚠️ Troubleshooting UV Editor

Problem: UV Editor is blank/empty

• Cause: No mesh selected or mesh has no UVs yet
• Fix: Select object in 3D view, enter Edit Mode, unwrap it

Problem: Can't see texture image in UV Editor

• Cause: No image loaded in material or UV Editor
• Fix: Load image via image selector dropdown in UV Editor header

Problem: Selection in UV Editor doesn't match 3D Viewport

• Cause: Sync Selection is OFF
• Fix: Enable "Sync Selection" button in UV Editor header

Problem: UVs outside the 0-1 square

• Not always a problem: UVs can exist outside 0-1 (texture tiles or repeats)
• To move back: Select all (A), scale (S) and move (G) to fit

Problem: Can't select UVs

• Cause: In Object Mode instead of Edit Mode
• Fix: Press Tab to enter Edit Mode

✅ UV Editor Best Practices

• Always use UV Grid for testing: Shows distortion instantly
• Keep Sync Selection ON: Intuitive workflow between 3D and UV
• Use L (Select Linked) constantly: Fastest way to select islands
• Learn keyboard shortcuts: G/R/S for move/rotate/scale essential
• Frame Selected often: Numpad . keeps you focused
• Use stretch overlay: Visual feedback on distortion quality
• Work in Face Select mode: Usually fastest for island manipulation
• Save incrementally: UV work takes time, save progress often!

✂️ Seam Fundamentals

What is a seam?

• An edge marked as a "cut" in your mesh
• When unwrapping, Blender splits the mesh at seams
• Creates boundaries between UV islands
• Shown as red edges in 3D Viewport (when in Edit Mode)

Why do we need seams?

• Most 3D shapes can't flatten perfectly without cuts
• Seams allow complex geometry to unwrap with minimal distortion
• Trade-off: More seams = less distortion, but more visible cuts

📝 Seam Operations

To mark seams:

1. Enter Edit Mode (Tab)
2. Switch to Edge Select Mode (2 key)
3. Select edge(s) you want to mark as seams
4. Right-click → Mark Seam
5. Or press Ctrl+E → Mark Seam
6. Edges turn red (seam color)

To clear seams:

1. Select seam edge(s)
2. Right-click → Clear Seam
3. Or Ctrl+E → Clear Seam
4. Edges return to normal color

To select all seams:

1. In Edit Mode, deselect all (Alt+A)
2. Select → Select All by Trait → Seams
3. All seam edges become selected

✅ Seam Placement Strategy

Preferred seam locations:

• Hidden areas: Undersides, inside surfaces, backs of objects
• Natural breaks: Where materials change (skin to clothing, different parts)
• Geometric edges: Sharp edges, corners, hard surface transitions
• Occlusion areas: Places shadowed or not visible in typical views
• Symmetry lines: Center line of symmetric models (if using mirrored UVs)

Avoid seams in:

• Middle of smooth, visible surfaces (creates visible texture discontinuity)
• Faces/prominent features (seams on faces are very noticeable)
• Areas that will be painted with continuous patterns
• Hero areas (the parts that get the most screen time/attention)

⚠️ The Seam Visibility Trade-off

The fundamental dilemma:

• Too few seams: Excessive stretching and distortion
• Too many seams: Lots of visible discontinuities

The solution: Strategic placement—just enough seams to minimize distortion, placed in locations where discontinuities won't be noticed!

📦 Cube Seam Pattern

Strategy: Create a cross pattern (like unfolding a cardboard box)

• Mark 7 edges total
• Creates 6 separate squares (one per face) OR
• Creates cross/T-shape layout (connected faces)
• Zero distortion—cubes unwrap perfectly!

Seam placement:

• Option 1: Edge loop around middle + vertical cuts = cross pattern
• Option 2: Cut all but 5 edges to keep faces connected in useful layout

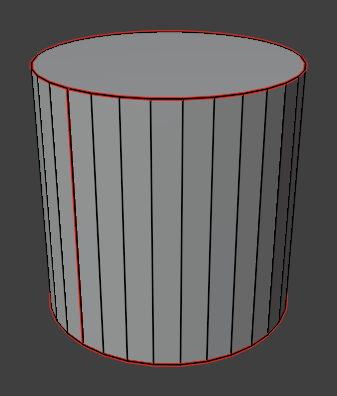

🔵 Cylinder Seam Pattern

Strategy: Single vertical seam

• Mark one vertical edge from top to bottom
• Optionally: Add seams at top and bottom edges (caps)
• Unwraps into rectangle (for barrel) + two circles (for caps)

Seam placement:

• Put vertical seam on back or underside (least visible)
• For labels/text, place seam opposite the front

⚪ Sphere Seam Pattern

Strategy: Longitude and latitude cuts (like an orange)

• Mark vertical seam from pole to pole (one longitude line)
• Optionally: Add horizontal seam at equator
• Creates strips that minimize distortion

Challenge: Spheres always have some distortion—it's mathematically impossible to flatten perfectly!

Advanced: For characters, use multiple vertical strips (orange peel pattern) for better results

🔄 How Unwrap Works

1. Identify islands: Finds continuous mesh sections between seams
2. Flatten each island: Uses mathematical algorithm to lay island flat
3. Minimize distortion: Tries to keep angles and relative sizes correct
4. Arrange in UV space: Places islands in 0-1 UV square

Unwrap methods:

• Angle Based (default): Preserves angles, good for most uses
• Conformal: Preserves local shapes, better for organic models

🧪 Seam Testing Workflow

1. Mark initial seams based on strategy
2. Unwrap (U → Unwrap)
3. Check UV Editor: How many islands? Are they reasonable?
4. Apply UV Grid texture to model
5. Look for distortion:
   • Squares should look square
   • Grid lines should be parallel and perpendicular
   • No excessive stretching
6. If distortion is bad:
   • Add seams in stretched areas
   • Unwrap again
   • Repeat until satisfied

⚖️ Manual Seams vs. Smart UV Project

Manual seam marking + Unwrap:

• Pros: Full control, optimal seam placement, fewer islands
• Cons: Time-consuming, requires planning
• Best for: Hero assets, characters, products, anything important

Smart UV Project (automatic):

• Pros: Fast, automatic, no seam marking needed
• Cons: Many islands, seams everywhere, less control
• Best for: Background objects, quick tests, hard-surface with many faces

⚠️ Seam Placement Pitfalls

Mistake 1: No seams at all

• Problem: Blender doesn't know where to cut
• Result: Awful distortion or failed unwrap
• Fix: Mark seams before unwrapping!

Mistake 2: Too few seams (trying to minimize cuts)

• Problem: Forcing complex geometry to unwrap as one island
• Result: Extreme stretching and distortion
• Fix: Add strategic seams in high-distortion areas

Mistake 3: Seams through visible areas

• Problem: Seam running across character's face, front of product, etc.
• Result: Visible texture discontinuity
• Fix: Move seams to edges, backs, undersides, natural breaks

Mistake 4: Random, unplanned seam placement

• Problem: Just clicking edges without strategy
• Result: Chaotic UV layout, hard to texture
• Fix: Plan seam layout before marking—think about how it will unwrap

Mistake 5: Not testing unwrap iteratively

• Problem: Marking all seams at once, unwrapping once
• Result: Issues discovered too late
• Fix: Unwrap frequently during seam marking to test results

🎯 Advanced Seaming Strategies

Seam from selection:

• Select edge loop with Alt+Click
• Instantly mark entire loop as seam
• Fast for cylindrical objects

Sharp edges as seams:

• Use sharp edges (from Edge Split modifier or marked sharp) as seam guides
• Natural locations for seams on hard-surface models

Symmetrical seam placement:

• For symmetrical models, place seams symmetrically
• Allows mirroring UVs for efficient texture use
• One side of character can use same texture space as other side

Seam "loops" strategy:

• Create closed loops of seams to define UV islands
• Each loop = one island boundary
• Think: "I want this part to be one island, so I'll loop seams around it"

✅ Professional Seaming Workflow

1. Plan strategically:
   • Look at model, identify natural seam locations
   • Think about how it will unwrap
   • Consider what areas need most texture detail
2. Mark initial seams:
   • Start with obvious locations (edges, backs, undersides)
   • Create logical island divisions
3. Test unwrap:
   • A to select all, U → Unwrap
   • Check result in UV Editor
4. Evaluate distortion:
   • Apply UV Grid texture
   • Enable Stretch overlay in UV Editor
   • Identify problem areas (red/yellow stretching)
5. Refine seams:
   • Add seams in distorted areas
   • Remove unnecessary seams from good areas
   • Adjust seam placement for better visibility
6. Unwrap again and test:
   • Repeat until distortion is minimal
   • And seams are in acceptable locations
7. Finalize:
   • Accept that some distortion is inevitable
   • Compromise between perfection and practicality

📦 Standard Unwrap

How to use it:

1. Enter Edit Mode (Tab)
2. Select faces you want to unwrap (or A for all)
3. Press U to open UV Mapping menu
4. Select "Unwrap"
5. Results appear in UV Editor

What it does:

• Uses your marked seams to cut the mesh
• Flattens each island with minimal distortion
• Automatically arranges islands in UV space
• Preserves relative proportions

Method options (in operator panel):

• Angle Based: Default, good general-purpose unwrapping
• Conformal: Better for organic shapes, preserves angles better

✅ When to Use Standard Unwrap

• Best for: Models with properly marked seams
• Ideal situations: Organic models, characters, creatures, props
• Requirement: You've marked seams strategically
• Advantage: Maximum control over island layout
• Result: Clean, predictable UV islands

🤖 Smart UV Project

How to use it:

1. Enter Edit Mode
2. Select faces to unwrap (A for all)
3. Press U → Smart UV Project
4. Adjust settings in operator panel (optional)
5. Confirm

What it does:

• Automatically calculates optimal projection angles
• Creates seams automatically (ignores your manual seams)
• Projects mesh from multiple directions
• Creates many small islands

Key settings:

• Angle Limit: Controls how much faces can deviate (lower = more islands)
• Island Margin: Spacing between islands (prevents texture bleeding)
• Area Weight: Prioritizes larger faces (keeps them less distorted)

⚠️ Smart UV Project Trade-offs

Advantages:

• Super fast—no seam marking required
• Great for complex hard-surface models
• Minimal distortion on each island
• Perfect for quick tests or background objects

Disadvantages:

• Creates MANY small islands (harder to texture paint)
• Seams everywhere (visible texture breaks)
• Less efficient texture space usage
• Not ideal for hand-painted textures

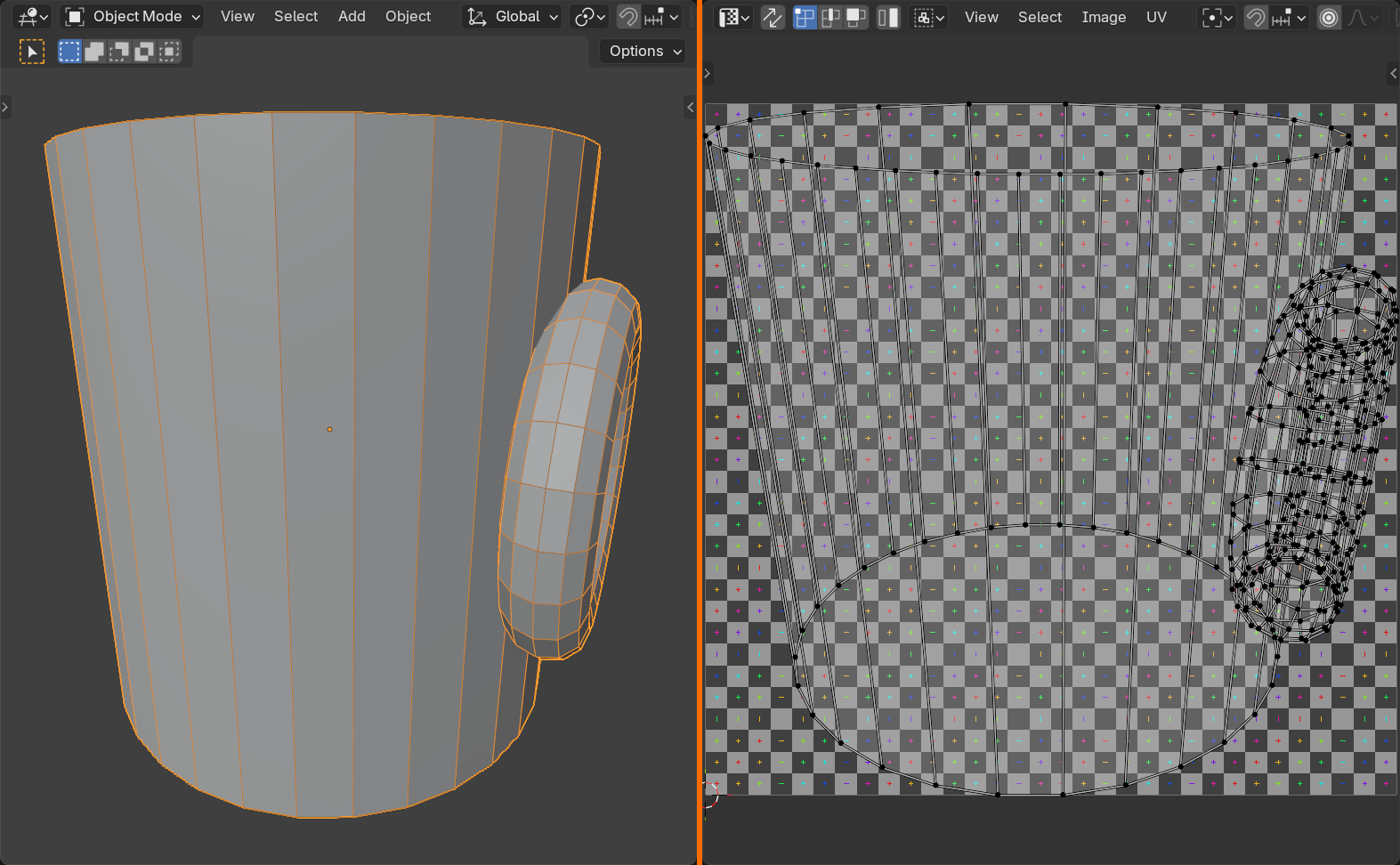

📷 Project from View

How to use it:

1. Position your 3D Viewport to desired angle
2. Select faces in Edit Mode
3. Press U → Project from View
4. UVs are projected exactly as you see them

What it does:

• Creates flat projection from camera angle
• Like taking a photo and using it as UV map
• No consideration of 3D shape—purely 2D projection

Best uses:

• Applying decals (logos, labels, signs)
• Projecting photographs onto surfaces
• Quick placeholder UVs
• Flat surfaces viewed from one angle

Limitation: Faces not visible from view angle get distorted or stacked UVs

📦 Cube Projection

How it works:

• Projects from 6 directions (like sides of a cube)
• Each face gets assigned to closest projection direction
• Automatic seams at projection boundaries

Best for:

• Box-like objects (buildings, furniture, containers)
• Hard-surface models with clear sides
• Architectural elements

Settings:

• Cube Size: Scale of projection box
• Correct Aspect: Maintain proportions
• Clip to Bounds/Scale to Bounds: Fit UVs in 0-1 space

🔵 Cylinder Projection

How it works:

• Wraps UVs around a cylindrical shape
• Like wrapping a label around a can
• Vertical axis maps to one UV direction
• Horizontal wrapping maps to other UV direction

Perfect for:

• Cylindrical objects (cans, bottles, columns, pipes)
• Arms and legs (character modeling)
• Tree trunks

Tip: Align object to viewport axis before projecting for best results

⚪ Sphere Projection

How it works:

• Projects UVs as if wrapping around a sphere
• Like a globe map projection (latitude/longitude)
• Creates characteristic "pole pinching" at top/bottom

Perfect for:

• Spherical objects (planets, balls, heads)
• Dome structures
• Round organic forms

Known issue: Always has distortion at poles—mathematically unavoidable!

⚙️ Common Unwrap Options

Method (Unwrap command):

• Angle Based: Default algorithm, balanced results
• Conformal: Preserves angles better, good for organic shapes

Fill Holes:

• Automatically fills in missing faces during unwrap
• Useful for models with holes or open edges

Correct Aspect:

• Maintains proportions relative to 3D model
• Prevents UVs from being squished or stretched
• Usually keep this ON

Use Subdivision Surface:

• Unwraps as if Subdivision Surface modifier is applied
• Smoother UVs for subdivided models

Margin:

• Space between UV islands (measured in UV units)
• Prevents texture bleeding between islands
• Typical value: 0.001 to 0.01

📂 Accessing UV Editor

Method 1: Switch workspace

• Click "UV Editing" tab at top of Blender window
• Gives split view: 3D Viewport (left) + UV Editor (right)
• Most convenient for unwrapping workflow

Method 2: Change editor type

• Click editor type icon (top-left corner of any editor)
• Select "UV Editor" from menu
• Converts current editor to UV Editor

Method 3: Split view manually

• Drag corner of editor to split
• Change one side to UV Editor
• Customize layout as needed

🗺️ UV Editor Components

Main elements:

• UV Grid: The square workspace (0-1 UV space)
• UV Islands: Your unwrapped mesh shown as 2D shapes
• Background Image: Optional texture or UV test grid
• Toolbar (left): Selection and transformation tools
• Sidebar (N key): Properties and UV statistics
• Header (top): View options, sync settings, display modes

The UV grid explained:

• 0-1 square: Standard UV space (entire texture fits here)
• Outside 0-1: UVs can go outside, texture will tile/repeat
• Grid lines: Help with alignment and positioning

✅ Understanding UV Space

The UV Editor shows a normalized 0-1 square. Here's what that means:

• Bottom-left corner = (0, 0)
• Top-right corner = (1, 1)
• Any point in square = coordinate from 0 to 1 in each direction
• Your texture image maps to this exact square
• UVs filling the square = texture fully utilized

Why 0-1? It's resolution-independent! Same UVs work with 512px, 2048px, or 4K textures.

🎯 UV Selection Modes

Selection modes (same keys as 3D):

• 1 - Vertex select mode
• 2 - Edge select mode
• 3 - Face select mode

Selection tools:

• Box Select: B - Drag rectangle to select
• Circle Select: C - Paint selection with circle brush
• Lasso Select: Ctrl+Shift - Freehand selection
• Select All: A - Select everything
• Deselect All: Alt+A - Deselect everything
• Invert Selection: Ctrl+I - Flip selection

Advanced selection:

• Select Linked: L (mouse over) - Select entire UV island
• Select Linked (all): Ctrl+L - Select all UVs connected to current selection
• Select More/Less: Ctrl+Plus/Minus - Grow/shrink selection

⚠️ UV Editor Selection Sync

Important concept: Selection syncing

When you select something in 3D Viewport, the corresponding UVs select in UV Editor (and vice versa). This is controlled by the UV Sync Selection button in UV Editor header.

UV Sync Selection ON:

• 3D and UV selections are locked together
• Select in one view, it selects in both
• Great for finding which UVs belong to which faces

UV Sync Selection OFF:

• 3D and UV selections are independent
• Can select different things in each view
• Better for UV-specific operations (selecting by UV layout)

Toggle: Click magnet icon in UV Editor header, or use keyboard shortcut

🔄 UV Transformation

Basic transforms (same as 3D):

• Move: G - Grab and move selected UVs
• Rotate: R - Rotate around median point
• Scale: S - Scale up or down

Constrained movement:

• G then X - Move only horizontally (U direction)
• G then Y - Move only vertically (V direction)
• S then X or Y - Scale in one direction only

Numeric input:

• After G/R/S, type number for precise control
• Example: S, 2, Enter - Scale 2x
• Example: G, X, 0.5, Enter - Move 0.5 units in U

Pivot point:

• Set pivot point in header (same as 3D: Median, Individual Origins, etc.)
• Affects rotation and scale center point

👁️ Display Settings

View menu options:

• Frame All: Home - Fit all UVs in view
• Frame Selected: Numpad Period - Zoom to selected UVs
• Zoom: Scroll wheel or Ctrl+Middle Mouse
• Pan: Middle Mouse drag

Overlays (in header):

• Show Stretch: Display distortion as color overlay
  • Blue = No distortion
  • Green = Minimal distortion
  • Yellow/Orange = Some distortion
  • Red = Heavy distortion
• Show Modified Edges: Highlight seams and sharp edges
• Show Face Orientation: Check for flipped faces (blue vs red)

Background image:

• Shows texture behind UVs
• Helps with precise placement
• Toggle in Sidebar (N) → Image panel

🏝️ Island Selection Techniques

Select entire island:

• Hover mouse over any part of island
• Press L - Selects all connected UVs
• Fastest way to grab an island

Select multiple islands:

• L over first island
• Shift+L over additional islands
• Adds to selection

Box select islands:

• B for box select
• Draw box around islands
• Selects all UVs within box

Select overlapping islands:

• Select → Select Overlap
• Finds islands stacked on top of each other
• Useful for fixing UV layout issues

📊 Sidebar Panels

Transform panel:

• Shows exact location, rotation, scale of selected UVs
• Type values for precise positioning
• Useful for aligning UVs to specific coordinates

Image panel:

• Select which texture to display
• Pin image (keep showing even when selecting different objects)
• Adjust UV/Image display settings

UDIM Grid:

• For advanced workflows using multiple texture tiles
• Shows grid of 1x1 squares (UDIM tiles)
• Each tile can hold different texture

View panel:

• Repeat image (tiling) settings
• Grid display options
• View customization

📦 UV Packing Basics

What is packing?

• Arranging UV islands to fill UV space efficiently
• Minimizes wasted texture space
• Maximizes resolution for every surface
• Like playing Tetris with your UVs!

Manual packing method:

1. Select islands you want to pack
2. Use G, R, S to move, rotate, scale
3. Arrange to minimize gaps
4. Leave small margin between islands (prevent texture bleeding)

Automatic packing:

1. Select all UVs (A in UV Editor)
2. Go to UV menu → Pack Islands
3. Or right-click → Pack Islands
4. Blender automatically arranges for best fit

✅ Pack Islands Settings

Key options (in operator panel after packing):

• Margin: Space between islands (default: 0.001)
  • Too small = texture bleeding (colors leak between islands)
  • Too large = wasted space
  • Recommended: 0.001 to 0.005
• Rotate: Allow islands to rotate for better fit
  • Can enable for maximum efficiency
  • Disable if you need specific orientations
• Shape Method:
  • AABB: Axis-aligned bounding box (fast, less precise)
  • Convex Hull: Wraps tighter (slower, more efficient)
  • Concave: Best fit (slowest, most efficient)

📏 Proportional Island Scaling

Why it matters:

• Islands should be sized relative to their 3D surface area
• Larger 3D surfaces → larger UV islands (more texture pixels)
• Smaller 3D surfaces → smaller UV islands (fewer pixels)
• Maintains consistent texture density across entire model

The problem with non-proportional scaling:

• Small detail gets huge UV space = excessive resolution (wasted)
• Large surface gets tiny UV space = blurry texture (bad quality)
• Inconsistent texture sharpness across model

How to maintain proportions:

• Blender's Unwrap usually creates proportional islands automatically
• Use Average Island Scale to normalize (UV menu → Average Island Scale)
• Visually compare island sizes to 3D surface areas

⚠️ When to Break Proportionality

Sometimes you WANT disproportionate scaling:

• Hero surfaces: Face, hands, logos get extra resolution
• Detail areas: Parts that will be seen close-up
• Hidden surfaces: Undersides, backs get less resolution

The rule: Start proportional, then strategically adjust for importance!

🔄 Island Rotation Strategies

Why rotate islands?

• Align to texture features (wood grain, fabric weave)
• Improve packing efficiency (fit more in UV space)
• Orient for easier hand painting
• Standardize orientation across similar parts

How to rotate:

• Select island (L over it)
• Press R to rotate
• Type angle (90, 180, etc.) for precise rotation
• Or rotate freely by moving mouse

Common rotation angles:

• 90° increments: For architectural alignment
• Arbitrary angles: For optimal packing
• Aligned to grid: For tiled textures

📐 Straightening Techniques

Align edges:

1. Switch to edge select mode (2)
2. Select edge loop you want to straighten
3. S (scale), then X or Y, then 0
4. Flattens selected edges to perfectly straight line

Follow Active Quads (grid-like unwrapping):

1. Select faces you want to straighten
2. Make sure one quad is active (last selected)
3. Press U → Follow Active Quads
4. Creates perfectly rectangular UV layout based on active face
5. Great for architectural surfaces, floors, walls

Use case: Straightening is especially useful for surfaces that should have perfectly aligned textures (tiles, bricks, panels)

📌 UV Pinning

What is pinning?

• Marks specific UV vertices as "locked"
• Pinned vertices won't move during unwrap operations
• Rest of island adjusts around pinned points
• Shown as red vertices in UV Editor

How to pin:

1. Select UV vertices you want to pin
2. Press P → Pin
3. Or UV menu → Pin
4. To unpin: Alt+P or UV menu → Unpin

Use cases:

• Partial re-unwrap: Pin good areas, re-unwrap problematic areas
• Manual UV shaping: Pin corners to specific locations, unwrap fills in between
• Align to texture features: Pin specific points to match texture elements

✅ Advanced Pinning Workflow

The "pin and refine" technique:

1. Do initial unwrap (creates base layout)
2. Manually position corners or edges where you want them
3. Pin those vertices (P)
4. Select entire island and unwrap again
5. Pinned vertices stay in place, rest adjusts with less distortion
6. Iterate: move pins, unwrap, check result

This gives you control over general layout while letting Blender optimize distortion!

🔗 Welding UV Vertices

What is welding?

• Merges selected UV vertices to same location
• Like "Merge Vertices" but for UVs only
• Doesn't affect 3D geometry

How to weld:

1. Select UV vertices to weld (must be from same mesh)
2. Press W → Weld
3. Or right-click → Weld
4. Vertices merge to average position

Stitch operation:

1. Select UV edges you want to join (from two islands)
2. Press V → Stitch
3. Bridges gap between islands, joining them
4. Useful for fixing seam placement mistakes

📋 UV Copy/Paste

Why copy UVs?

• Reuse unwrapping work on similar geometry
• Create symmetrical UVs quickly
• Transfer good UVs to problematic areas

Copy/paste workflow:

1. Select faces with UVs you want to copy (in 3D Viewport)
2. In UV Editor: UV menu → Copy UVs
3. Select target faces (faces that will receive copied UVs)
4. UV menu → Paste UVs
5. UVs are transferred to new selection

Important: Target faces must have same topology (face count, edge flow) as source!

🪞 UV Mirroring

The concept:

• Left and right sides of model share same UV space
• One side's UVs are flipped copy of other side
• Saves 50% of texture space!
• Perfect for characters, vehicles, symmetrical objects

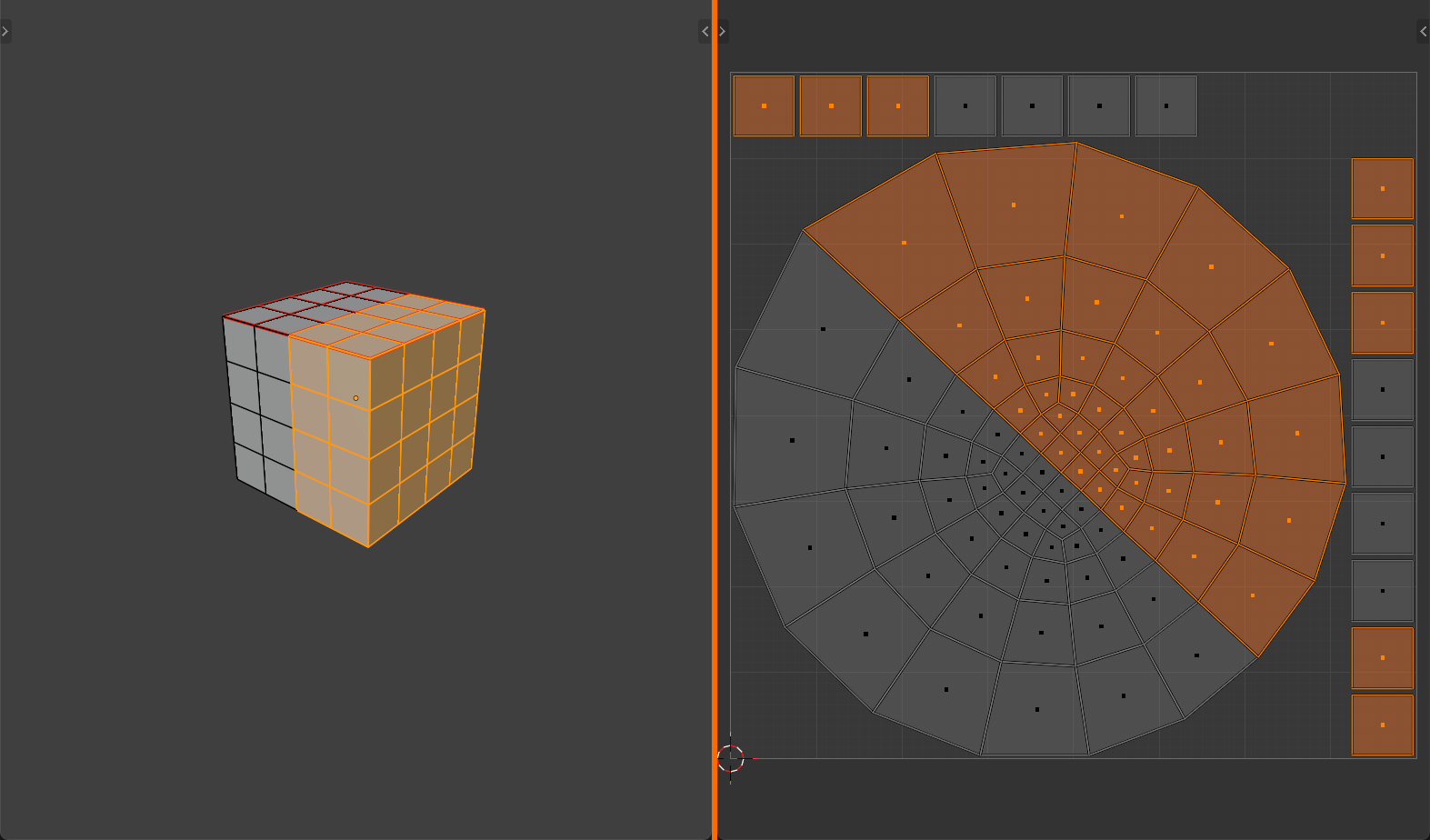

Setting up mirrored UVs:

1. Unwrap one half of model (with seam down middle)
2. Select UVs for other half
3. UV menu → Mirror → Mirror X (or Y)
4. Or: Copy UVs from first half, paste to second half, then mirror

Trade-offs:

• Pro: Double the texture resolution per unique surface
• Pro: Easier to maintain symmetry in texture painting
• Con: Can't have asymmetrical details (scars, dirt on one side)
• Con: Obvious mirror repetition if not handled carefully

📊 Understanding Texture Density

What is texture density?

• How many texture pixels cover a given 3D surface area
• Measured in "pixels per unit" or "texels per unit"
• Higher density = sharper textures (more pixels per surface)
• Lower density = blurrier textures (fewer pixels per surface)

Why consistency matters:

• Inconsistent density = some parts sharp, others blurry
• Looks unprofessional and breaks immersion
• Consistent density = uniform quality across model

Checking texture density:

• Use UV Grid texture in 3D Viewport
• Checker squares should be roughly same size everywhere
• Large squares = low density (will be blurry)
• Small squares = high density (will be sharp)

✅ Achieving Consistent Texture Density

Method 1: Average Island Scale

1. Select all UVs in UV Editor (A)
2. UV menu → Average Island Scale
3. Blender automatically scales islands proportionally
4. All islands now have consistent density

Method 2: Manual visual matching

1. Apply UV Grid texture to model
2. Look at checker pattern in 3D Viewport
3. Scale islands in UV Editor until checkers match
4. Use one "reference" area as standard

📦 Maximizing UV Space

Key principle: Fill as much of the 0-1 square as possible!

Why it matters:

• Unused UV space = wasted texture resolution
• If islands only fill 50% of space, you're only using 50% of texture
• Better packing = more pixels available = higher quality

Optimization techniques:

• Pack Islands: Use automatic packing with low margin
• Scale up: After packing, scale all islands up to fill space
• Rotate: Enable rotation in Pack Islands for tighter fit
• Remove margins: Get rid of unnecessary padding
• Stack identical islands: If you have mirrored or repeated geometry

The balance: Maximum coverage vs. practical margin (to prevent texture bleeding)

⚠️ The Margin Trade-off

Too little margin (< 0.001):

• Texture bleeding—colors from one island leak to neighbors
• Visible seams and artifacts
• Mipmap issues (blurriness causes color mixing)

Too much margin (> 0.01):

• Wasted texture space
• Lower effective resolution
• Inefficient use of texture budget

Sweet spot: 0.001 to 0.005

Larger textures (4K, 8K) can use smaller margins. Smaller textures (1K, 512px) need larger margins.

🔄 Overlapping UV Strategies

Intentional overlapping (good uses):

• Symmetrical models: Mirror left/right to share UV space
• Repeated elements: Multiple identical parts use same UVs
• Texture reuse: Different objects sharing same texture regions
• Result: More efficient texture use, higher resolution per unique surface

Accidental overlapping (problems):

• Islands stacked on top of each other by mistake
• Causes texture painting issues (paint appears in multiple places)
• Baking problems (lighting bakes to multiple surfaces incorrectly)

Finding overlaps:

• UV Editor: Select → Select Overlap
• Highlights all overlapping UV islands
• Fix by moving islands apart

📺 Multiple UV Channels

What are UV channels?

• Same mesh can have multiple, completely different UV layouts
• Each UV map is independent
• Useful for different purposes per channel

Common multi-channel setups:

• UV Map 1: Main textures (color, roughness, normal)
• UV Map 2: Lightmap (for baked lighting)
• UV Map 3: Special effects (decals, wear patterns)

Managing UV maps:

• Object Data Properties → UV Maps panel
• Add new UV map with + button
• Set active map (used for editing)
• Set render map (used by materials)

When to use multiple channels:

• Game engines requiring separate lightmap UVs
• Different UV layouts for different texture purposes
• Combining tiled textures with unique textures

🔍 Analyzing UV Distortion

Types of distortion:

• Stretching: UVs pulled apart (texture stretched on 3D surface)
• Compression: UVs squeezed together (texture compressed)
• Angular distortion: Angles don't match (squares become diamonds)
• Area distortion: Relative sizes don't match 3D proportions

Visualizing distortion:

• Stretch overlay: In UV Editor, enable "Display Stretch"
  • Blue/Green = Good (minimal distortion)
  • Yellow/Orange = Acceptable (some distortion)
  • Red = Bad (heavy distortion)
• UV Grid texture: Apply to model in 3D Viewport
  • Checkers should be square and uniform
  • Stretched rectangles = stretching distortion
  • Size variation = inconsistent texture density

Fixing distortion:

• Add seams in highly distorted areas
• Unwrap again (more islands = less distortion per island)
• Use Minimize Stretch operator (UV menu)
• Relax UVs (UV menu → Relax)

🧘 UV Relaxation

What does Relax do?

• Iteratively moves UV vertices to minimize distortion
• Like "smoothing" the UV layout
• Reduces stretching and compression
• Makes UV spacing more even

How to use Relax:

1. Select UVs you want to relax (or select all for entire island)
2. UV menu → Relax
3. Or press Alt+R (may vary by keymap)
4. Adjust iterations in operator panel (more = smoother)

Best practices:

• Pin border vertices first: Preserves island shape
• Use lower iterations: Start with 5-10, increase if needed
• Relax after manual adjustments: Smooths out manual positioning

Caveat: Relaxation can change island shape—use pinning to control!

💎 Professional UV Layout Checklist

Before considering UVs "done," verify:

• ✅ Seams in logical locations (hidden, natural breaks, edges)
• ✅ Minimal distortion (mostly blue/green in stretch overlay)
• ✅ Consistent texture density (uniform checker sizes)
• ✅ Efficient UV space usage (islands fill most of 0-1 square)
• ✅ Proper margins (0.001-0.005 between islands)
• ✅ No accidental overlaps (unless intentional mirroring)
• ✅ Islands properly oriented (aligned for painting or packing)
• ✅ Appropriate island count (not too many, not too few)
• ✅ Strategic use of mirroring (if applicable)
• ✅ Clean, straightened edges (where needed for tiling textures)

🎯 Project Goals

What you'll learn:

• Complete UV unwrapping workflow from start to finish
• Strategic seam placement on a real object
• Using cylinder projection for appropriate geometry
• Packing and optimizing UV islands
• Testing UVs with checker texture
• Professional UV layout practices

Estimated time: 20-30 minutes

🏗️ Creating the Mug

1. Start fresh:
   • Delete default cube (X → Delete)
   • Shift+A → Mesh → Cylinder
2. Scale to mug proportions:
   • S → Z → 1.5 → Enter (taller)
   • S → Shift+Z → 0.7 → Enter (narrower)
3. Make it hollow (like a real mug):
   • Enter Edit Mode (Tab)
   • Switch to Face Select (3)
   • Select top face
   • Press I (inset) → Move mouse inward → Click to confirm
   • With inner face still selected: E (extrude) → Z → -1.2 → Enter
4. Add thickness to rim:
   • Select top edge loop (Alt+Click the top ring)
   • Add Solidify modifier (Modifier Properties → Add Modifier → Solidify)
   • Thickness: 0.05
   • Apply modifier (Ctrl+A in modifier panel)
5. Smooth shading:
   • Right-click in 3D Viewport → Shade Smooth

✅ Checkpoint 1

You should now have a smooth, hollow cylinder that looks like a basic mug body. The top should be open with a rim, and the bottom should be closed.

🔧 Creating the Handle

1. Add a curve for the handle:
   • Shift+A → Curve → Bezier Curve
   • Rotate: R → Y → 90 → Enter
   • Position next to mug (right side)
2. Shape the handle curve:
   • Enter Edit Mode (Tab)
   • Select and move control points to create handle arc
   • Make it loop from upper mug to mid-lower area
   • Adjust bezier handles for smooth curve
3. Give the curve thickness:
   • Select curve object
   • Curve Properties → Geometry
   • Bevel → Depth: 0.05
   • Resolution: 4 (preview circles)
4. Convert to mesh:
   • Object Mode
   • Select curve
   • Right-click → Convert To → Mesh
5. Join to mug:
   • Select handle, then Shift+Click mug (mug should be active)
   • Ctrl+J to join
   • Now one unified object

📋 Seam Planning for the Mug

Analyze the model:

• Mug body: Cylindrical shape → needs one vertical seam
• Mug bottom: Circular face → separate island
• Inside surface: Also cylindrical → needs vertical seam
• Handle: Curved tube → needs seam along inner curve (least visible)

Our seam strategy:

1. Vertical seam on back of mug (single edge from top to bottom)
2. Seam around bottom edge (separates bottom circle from body)
3. Seam around top inner rim (separates inside from outside)
4. Seam along handle's inner curve (hidden from front view)

Result: Four distinct islands—outside body, inside body, bottom, and handle

✂️ Marking Mug Seams

1. Mark vertical seam on back:
   • Edit Mode, Edge Select (2)
   • Rotate view to see mug back
   • Select one vertical edge on back side
   • Right-click → Mark Seam (edge turns red)
2. Mark bottom edge seam:
   • Alt+Click bottom edge loop
   • Right-click → Mark Seam
   • Entire bottom ring should be red
3. Mark inner rim seam:
   • Alt+Click top inner edge loop (where inside meets rim)
   • Right-click → Mark Seam
4. Mark handle seam:
   • Select edge loop running along inner curve of handle
   • Right-click → Mark Seam
   • This separates handle into one island
5. Optional: Mark handle connection seams:
   • Mark edges where handle meets mug body
   • Creates cleaner separation between handle and body islands

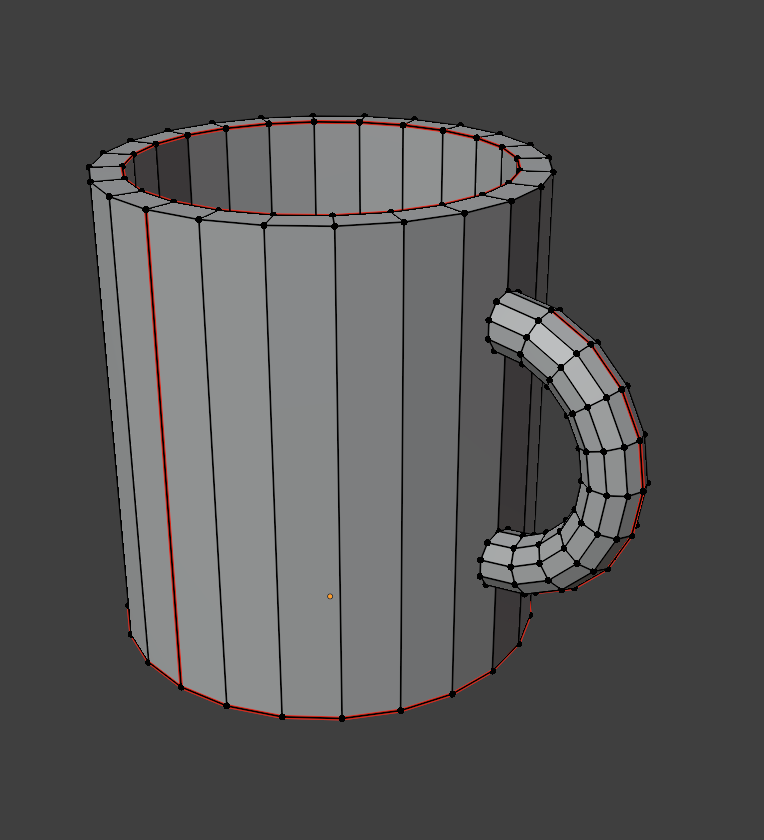

✅ Checkpoint 2

Your mug should now have red seam edges visible in Edit Mode. Verify you have:

• One vertical red line on back of mug
• Red ring around bottom
• Red ring around inner top rim
• Red line along inner handle curve

🖥️ Setting Up UV Workspace

1. Click "UV Editing" tab at top of Blender window
2. You'll see split view:
   • Left: UV Editor (empty for now)
   • Right: 3D Viewport
3. Make sure your mug is still selected
4. Verify you're in Edit Mode

🎯 Unwrapping Process

1. Select all faces:
   • In 3D Viewport (right side): A to select all
   • All faces should be highlighted
2. Execute unwrap:
   • Press U to open UV Mapping menu
   • Select "Unwrap"
   • Islands appear in UV Editor (left side)!
3. Check the result:
   • UV Editor should show 4-5 separate islands
   • Outer mug body (rectangle)
   • Inner mug body (rectangle)
   • Bottom circle
   • Handle (curved strip)
4. Adjust unwrap settings (optional):
   • Check lower-left operator panel
   • Method: Angle Based (default is fine)
   • Margin: 0.001 (increase if islands touch)

📦 Packing and Arranging

1. Initial automatic pack:
   • In UV Editor: A to select all UVs
   • UV menu → Pack Islands
   • Or right-click → Pack Islands
   • Islands automatically arrange in 0-1 space
2. Rotate islands for better packing:
   • Select outer body island (L over it)
   • R → 90 → Enter (if it improves fit)
   • Pack again to re-arrange
3. Manual adjustments:
   • Select individual islands with L
   • Use G to reposition for better layout
   • Scale larger islands up (S) to use more space
4. Final pack with rotation:
   • Select all (A)
   • UV menu → Pack Islands
   • Enable "Rotate" in operator panel
   • Margin: 0.005

📊 Texture Density Check

1. Normalize island scale:
   • In UV Editor: A to select all
   • UV menu → Average Island Scale
   • Islands resize to proportional sizes
2. Pack again after averaging:
   • UV menu → Pack Islands
   • Re-arranges with new sizes
3. Scale up to fill space:
   • Select all (A)
   • S → Scale up until islands nearly fill 0-1 square
   • Leave small margin at edges

🎨 Adding UV Test Texture

1. Create UV Grid texture:
   • In UV Editor: Image menu → New Image
   • Name: "UV_Grid"
   • Generated Type: UV Grid
   • Click OK
2. View texture on model:
   • In 3D Viewport (right side): Change shading mode to "Material Preview" or "Rendered"
   • Top-right shading mode balls, third from left
   • Mug should now display checker pattern
3. Alternative method (material-based):
   • Switch to Shading workspace
   • Add new material to mug
   • Add Image Texture node
   • Open UV_Grid image
   • Connect to Base Color

🔍 Quality Assessment

Check for distortion:

1. Visual inspection in 3D:
   • Rotate around mug in 3D Viewport
   • Checker squares should be uniform size
   • Squares should be square (not stretched)
   • Pattern should flow continuously (except at seams)
2. UV Editor stretch overlay:
   • In UV Editor header: Enable "Display Stretch"
   • Choose "Area" or "Angle" from dropdown
   • Blue/Green = Good
   • Yellow/Red = Needs attention
3. Fix any red areas:
   • If you see red stretching, add more seams
   • Or use Relax: Select problematic area → UV menu → Relax

✅ Final Checkpoint

Your completed mug UVs should have:

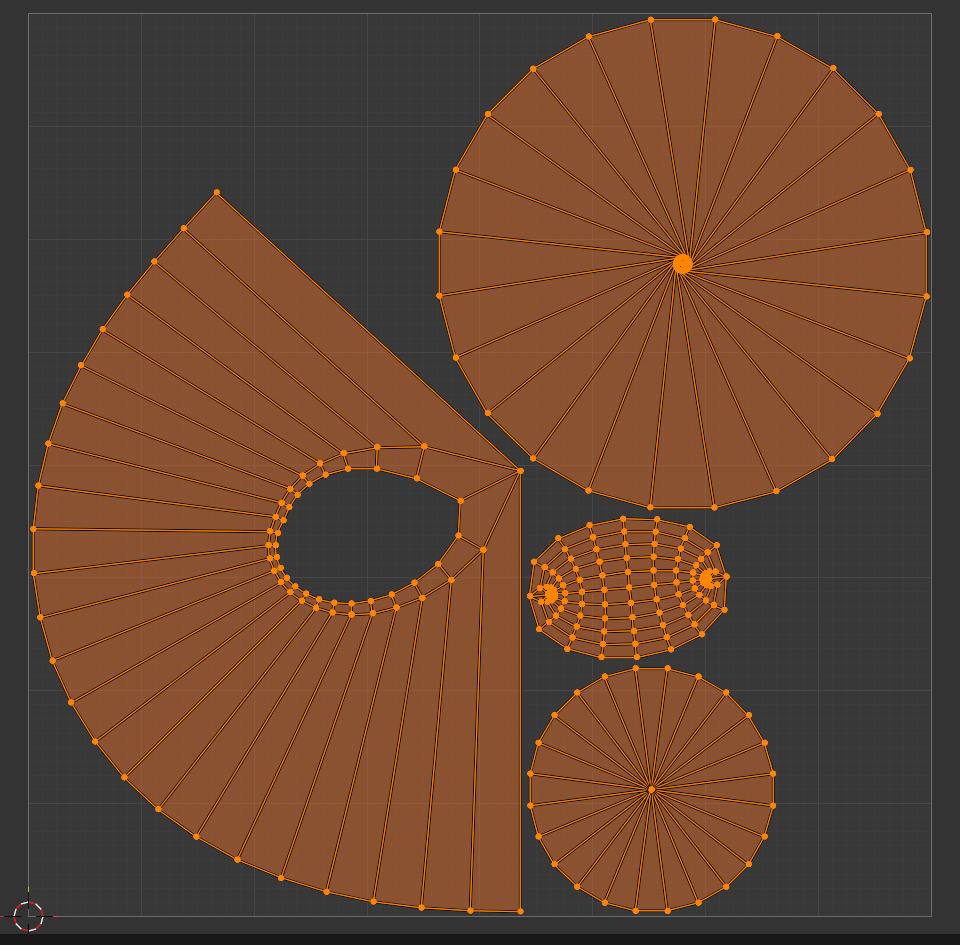

• ✅ 4-5 distinct UV islands visible in UV Editor
• ✅ Islands efficiently packed in 0-1 UV space
• ✅ Uniform checker pattern in 3D view (consistent texture density)
• ✅ Minimal stretching (mostly blue/green in stretch overlay)
• ✅ Seams hidden on back and inner surfaces
• ✅ Islands using 70-85% of available UV space

🌟 Advanced Exercises

Challenge 1: Mirror the handle

• Add a second handle on opposite side
• Make both handles share same UV space (overlap their UVs)
• Result: Both handles use one island = more efficient

Challenge 2: Add a logo area

• Create a small rectangle on front of mug (inset face)
• Mark seams around it
• Unwrap to create separate island for logo placement
• Position and orient this island for easy texture painting

Challenge 3: Optimize for texture painting

• Straighten the outer body island using Follow Active Quads
• Make it perfectly rectangular for easier brush strokes
• Scale it to use maximum available UV space

Challenge 4: Multi-material setup

• Assign different material to handle vs. body
• Create two UV maps (one for body, one for handle)
• Practice working with multiple UV channels

🔧 Problem Solving

Problem: UV islands are overlapping/stacked

• Cause: Insufficient seams or unwrap issue
• Fix: Select → Select Overlap, then move islands apart manually

Problem: Checker texture is stretched on handle

• Cause: Handle curved in 3D but UVs are straight
• Fix: Add more seams along handle, or use Relax operation

Problem: Bottom circle doesn't unwrap correctly

• Cause: Might need Project from View instead of Unwrap
• Fix: Select bottom faces, view from bottom, U → Project from View

Problem: Can't see UV Grid on model

• Cause: Shading mode or material not set up
• Fix: Change to Material Preview mode, or set up material with image texture

Problem: Islands are tiny in UV Editor

• Cause: Unwrap created small islands
• Fix: Select all (A), then S to scale up, or use Pack Islands

🎓 Skills Acquired

In this project, you've mastered:

• ✅ Complete UV unwrapping workflow from start to finish
• ✅ Strategic seam placement based on object geometry
• ✅ Using the UV Editing workspace effectively
• ✅ Unwrapping cylindrical and curved geometry
• ✅ Packing UV islands for efficient space usage
• ✅ Ensuring consistent texture density with Average Island Scale
• ✅ Testing UVs with checker texture
• ✅ Analyzing and fixing UV distortion
• ✅ Professional UV layout practices

You now have the skills to unwrap most simple to intermediate 3D models!

❌ The Problem

Not marking seams at all, or placing seams randomly without strategy.

What happens:

• Unwrap produces heavily distorted results
• One giant island with massive stretching
• Or random cuts that break visible surfaces

The fix:

• Always plan seam locations before unwrapping
• Think: "Where would this cut naturally occur?"
• Hide seams on backs, undersides, edges, natural breaks
• Test-unwrap frequently during seam marking

❌ The Problem

Not using Average Island Scale, resulting in inconsistent texture quality.

What happens:

• Small details get huge UV space (wasted resolution)
• Large surfaces get tiny UV space (blurry textures)
• Model looks unprofessional with quality variance

The fix:

• Always use UV menu → Average Island Scale after unwrapping
• Check with UV Grid texture—squares should be uniform size
• Only break proportionality intentionally for hero features

❌ The Problem

Not packing islands, leaving huge gaps in UV space.

What happens:

• Massive waste of texture resolution
• Islands only use 30-40% of available space
• Textures appear lower resolution than they could be

The fix:

• Always pack islands: UV menu → Pack Islands
• Scale islands up to fill 75-85% of UV space
• Leave appropriate margin (0.001-0.005) but no more

❌ The Problem

Unwrapping blindly without visual verification of distortion.

What happens:

• Don't discover stretching until texturing stage
• Have to redo UVs after investing time in textures
• Poor quality textures that look warped

The fix:

• ALWAYS apply UV Grid texture immediately after unwrapping
• Rotate model and inspect all surfaces
• Look for stretched rectangles, warped squares, size variance
• Fix issues before moving to next step

❌ The Problem

UV islands stacked on top of each other accidentally.

What happens:

• Painting one area affects multiple surfaces
• Baking lighting creates incorrect results
• Confusion during texture creation

The fix:

• In UV Editor: Select → Select Overlap to find overlaps
• Move overlapping islands apart
• Only overlap intentionally (mirroring, repeated elements)

❌ The Problem

Either creating a seam at every edge, or trying to unwrap with almost no seams.

What happens with too many seams:

• Hundreds of tiny islands
• Impossible to texture paint efficiently
• Visible discontinuities everywhere

What happens with too few seams:

• Extreme stretching and distortion
• Unusable UVs
• Textures look warped and wrong

The fix:

• Find the balance: enough seams to minimize distortion, few enough to keep islands manageable
• Start conservative (fewer seams)
• Add more seams only in problematic areas
• Check stretch overlay—add seams where you see red

❌ The Problem

Only checking UVs from one viewpoint.

What happens:

• Front looks perfect, but back is a disaster
• Bottom or hidden surfaces have terrible UVs
• Discover issues only after starting texturing

The fix:

• Rotate around entire model during UV check
• Inspect top, bottom, all sides
• Check hidden areas (undersides, interiors)
• Every surface matters!

❌ The Problem

Leaving UV islands slightly skewed or wavy when they should be rectangular.

What happens:

• Tiled textures don't align properly
• Harder to paint cleanly
• Looks unprofessional in UV layout

The fix:

• For architectural surfaces: Use Follow Active Quads
• For edge alignment: Scale edges to 0 in one axis (S → X → 0)
• Use Straighten in UV menu for auto-alignment

❌ The Problem

UVs extending beyond the 0-1 square (unless intentional tiling).

What happens:

• Texture repeats/tiles (if repeat is enabled)
• Or texture clamps at edge (stretches edge pixels)
• Parts of model don't receive proper texture

The fix:

• Keep all UVs within 0-1 square for unique textures
• Use Pack Islands to automatically constrain
• Only go outside intentionally for tiling materials

❌ The Problem

Forgetting that UVs are part of mesh data that needs to be saved.

What happens:

• Spend hour carefully unwrapping model
• Blender crashes or you close without saving
• All UV work lost forever

The fix:

• Save regularly! Ctrl+S frequently
• Enable auto-save in Preferences
• UVs are saved with .blend file (not separate)
• Consider versioned saves for complex UV work

🎯 Key Takeaways

Essential UV Unwrapping Concepts:

• UV mapping creates a 2D representation of 3D surfaces
• Seams are strategic cuts that allow 3D geometry to flatten
• UV islands are the flattened pieces of your mesh
• Texture density determines quality consistency across your model
• UV space (0-1 square) is where all your texture coordinates live
• Distortion is the enemy—minimize it with good seam placement

✅ Professional UV Unwrapping Workflow

1. Analyze the model
   • Identify natural seam locations
   • Consider where cuts will be least visible
   • Think about how surfaces will flatten
2. Mark seams strategically
   • Place seams on edges, backs, undersides
   • Create closed loops around logical sections
   • Balance distortion vs. seam visibility
3. Unwrap
   • Select all faces → U → Unwrap
   • Check result in UV Editor
4. Test for distortion
   • Apply UV Grid texture
   • Enable stretch overlay
   • Identify problem areas (red zones)
5. Refine seams
   • Add seams where distortion is high
   • Unwrap again and check improvement
   • Iterate until acceptable quality
6. Normalize texture density
   • UV menu → Average Island Scale
   • Verify uniform checker pattern
7. Pack islands efficiently
   • UV menu → Pack Islands
   • Adjust margin (0.001-0.005)
   • Enable rotation for better fit
8. Optimize layout
   • Scale islands to fill 75-85% of UV space
   • Straighten islands if needed (Follow Active Quads)
   • Manually adjust for special cases
9. Final quality check
   • Rotate around model viewing from all angles
   • Verify no overlaps (unless intentional)
   • Check that all surfaces look good
   • Save your work!

✅ The UV Unwrapping Golden Rules

1. Seams are strategic, not random

• Plan before marking
• Hide on edges, backs, undersides
• Think about how it will unwrap

2. Test early and often

• Apply UV Grid immediately
• Enable stretch overlay
• Check from all angles

3. Consistency is key

• Use Average Island Scale
• Maintain uniform texture density
• Check with checker pattern

4. Maximize texture space

• Pack islands efficiently
• Fill 75-85% of UV space
• Balance margin vs. coverage

5. Minimize distortion

• Add seams where you see stretching
• Use Relax for smoothing
• Aim for mostly blue/green in stretch overlay

6. Iterate and refine

• Unwrap is rarely perfect first try
• Add seams incrementally
• Test, adjust, test again

⚖️ The UV Balancing Act

Fewer seams vs. Less distortion:

• Fewer seams = fewer visible breaks, but more stretching
• More seams = less distortion, but more discontinuities
• Find the sweet spot for each model

Texture space vs. Margin:

• Tight packing = maximum resolution, risk of bleeding
• Wide margins = safety buffer, wasted space
• Use 0.001-0.005 as practical compromise

Proportional scaling vs. Hero surfaces:

• Proportional = consistent quality everywhere
• Strategic scaling = more detail where it matters
• Start proportional, adjust for importance

Manual control vs. Automatic tools:

• Manual = time-consuming but optimal
• Automatic = fast but less control
• Use Smart UV Project for quick tests, manual for finals

🎯 Prioritizing UV Quality

Critical UV quality needed for:

• Hero assets (main characters, products, focal points)
• Close-up shots
• Hand-painted textures
• Photorealistic rendering
• Objects with unique textures (not tiling materials)

Can use quick/automatic unwrapping for:

• Background objects
• Objects far from camera
• Models using only tiling materials
• Temporary/placeholder assets
• Conceptual/blockout work

🧰 UV Tools Reference

Unwrapping methods:

• Unwrap: Main method, uses seams, best for most models
• Smart UV Project: Automatic, no seams needed
• Project from View: Camera-based projection, for decals
• Cube/Cylinder/Sphere: Primitive projections
• Follow Active Quads: Creates grid-like layout

Organization tools:

• Pack Islands: Automatic efficient arrangement
• Average Island Scale: Normalize texture density
• Align/Straighten: Clean up island edges
• Mirror: Create symmetrical UVs

Editing tools:

• Pin/Unpin: Lock UV vertices
• Weld: Merge UV vertices
• Stitch: Join UV islands
• Relax: Smooth out distortion

Analysis tools:

• Display Stretch: Visualize distortion
• UV Grid texture: Test pattern for quality check
• Select Overlap: Find stacked islands

🚀 Advancing Your UV Skills

Practice projects to try:

1. Simple objects: Unwrap a book, a box, a bottle, a phone
2. Organic shapes: Unwrap a rock, an apple, a simple creature
3. Character parts: Unwrap a hand, a head, a full humanoid
4. Hard surface: Unwrap a sword, a robot, mechanical parts
5. Architectural: Unwrap a room, a building facade

Advanced topics to explore:

• UDIM workflows (multiple texture tiles)
• UV layout for game engines (lightmap UVs)
• Advanced UV manipulation with Python scripting
• Multi-resolution UV strategies
• UV animation and morphing

Skills that build on UV unwrapping:

• Texture painting (Lesson 13)
• PBR material creation
• Baking (normals, ambient occlusion)
• Substance Painter workflows
• Photogrammetry processing

💡 UV Problem-Solving Guide

Scenario: Character face needs maximum detail

• Solution: Give face island 2-3x more UV space than proportional size
• Scale other less important islands down
• Place face island in prominent UV location

Scenario: Symmetrical character model

• Solution: Mirror UVs so left/right share same space
• Mark seam down centerline
• Unwrap one half, mirror to other half
• Saves 50% texture space!

Scenario: Repeating architectural elements

• Solution: Stack UVs for identical elements
• All windows share same UV island
• All doors share same UV island
• Much more efficient than unique UVs

Scenario: Tiling brick wall texture

• Solution: Use Follow Active Quads
• Scale UVs larger than 0-1 (e.g., 5x5)
• Texture tiles/repeats across surface
• No need for unique texture

Scenario: Model with severe stretching

• Solution: Add more seams in red zones
• Break large islands into smaller islands
• Accept more seams for better quality
• Use Relax to smooth remaining distortion

🌟 You're Now a UV Unwrapper!

UV unwrapping might have seemed mysterious and complicated at first, but you now understand:

• ✅ Why UV mapping exists and how it works
• ✅ How to strategically plan and mark seams
• ✅ Multiple unwrapping methods for different situations
• ✅ How to use the UV Editor effectively
• ✅ Techniques for manipulating and optimizing UV islands
• ✅ How to test, analyze, and refine UV layouts
• ✅ Common mistakes and how to avoid them
• ✅ Professional workflows and best practices

Most importantly: You completed a full hands-on project and created professional-quality UVs yourself!

📚 Coming Up: Lesson 13 - Texture Painting Basics

In the next lesson, you'll learn:

• How to paint directly on 3D models using the UVs you created
• Texture painting workspace and tools
• Brush types and settings
• Creating hand-painted textures
• Blending colors and creating realistic details
• Painting with layers and masks
• Exporting textures for use in materials

Your UV unwrapping skills will be essential! Good UVs make texture painting easy and enjoyable. Poor UVs make it frustrating. You now have the foundation for success!

⚡ Quick Practice Suggestions

Before moving to the next lesson, reinforce your skills:

1. Unwrap 3 simple objects (pen, cup, book) using today's workflow
2. Challenge yourself: Unwrap something organic (apple, rock, simple character)
3. Experiment with mirroring: Create a symmetrical object and mirror its UVs
4. Practice seam placement: Unwrap the same object with different seam strategies
5. Compare methods: Try Smart UV Project vs. manual seaming on same model

Spend 30-60 minutes practicing, and UV unwrapping will become second nature!

🎓 Additional Resources

Want to dive deeper?

• Blender Manual: UV Editing section has detailed technical documentation
• Community forums: BlenderArtists, r/blender for specific problems
• Video tutorials: Search for "Blender UV unwrapping" for visual learning
• Practice models: Download free models to practice unwrapping

Remember: The best way to learn UV unwrapping is by doing. Every model you unwrap teaches you something new!

🎉 Congratulations!

You've completed Lesson 12: UV Unwrapping Basics!

You've gained a critical skill that bridges modeling and texturing. UV unwrapping is one of those fundamental skills that every 3D artist must master, and you're now equipped with professional workflows and best practices.

Take a moment to appreciate what you've learned—UV unwrapping is often considered one of the more challenging aspects of 3D art, yet you've conquered it with hands-on practice and real-world examples!

Ready to put those UVs to work? Let's move on to texture painting! 🎨
