🔬 PBR in Simple Terms

Traditional (non-PBR) approach:

• "Let's add a specular highlight here because it looks nice"
• Artists manually paint highlights and adjust reflection strength
• Materials look different under different lighting
• No consistency between different 3D packages
• Requires constant tweaking for each scene

PBR approach:

• "This surface has X roughness, so physics determines where highlights appear"
• Light behavior calculated automatically based on material properties
• Materials look correct under ANY lighting
• Consistent across all PBR renderers (Blender, Unity, Unreal, etc.)
• Set material properties once, works everywhere

🏛️ The Three Pillars

1. Energy Conservation:
   • Light never creates more energy than it receives
   • Reflected + Absorbed + Transmitted = 100% of incoming light
   • A surface can't be brighter than its light source
2. Physically Plausible Material Properties:
   • Materials behave like real-world counterparts
   • Metals and non-metals follow different rules (Fresnel effect)
   • Surface roughness follows measurable patterns
3. Accurate Light Behavior:
   • Light follows physics: reflection, refraction, absorption
   • Indirect lighting (bounces) calculated correctly

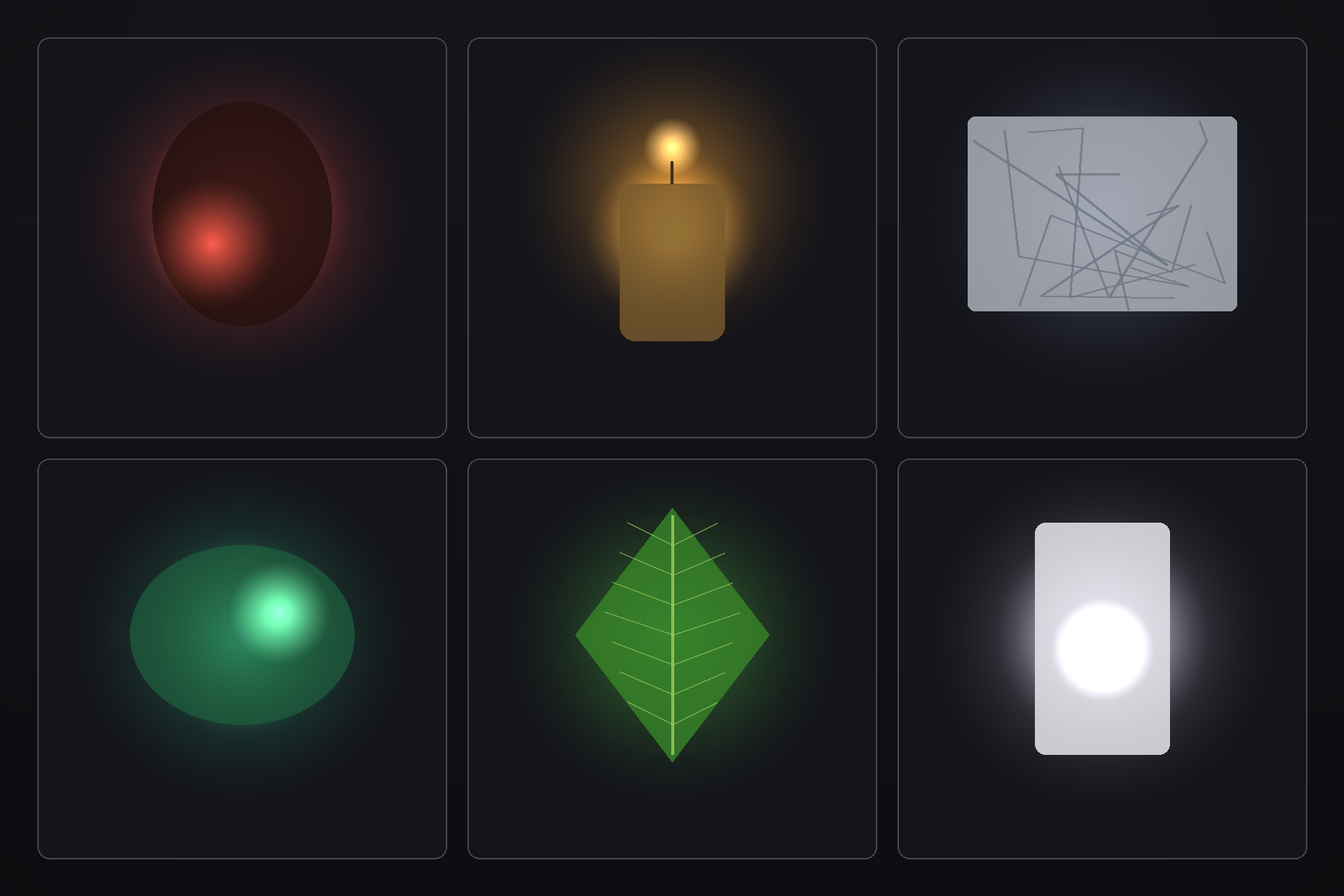

   • Color bleeding, caustics, subsurface scattering all work naturally

🕰️ Pre-PBR Challenges

• Specular/Glossiness maps: Manually paint where reflections should appear
• Different shaders for each material type: Separate shaders for metal, plastic, skin, etc.
• Lighting-dependent tweaking: Materials needed adjustment for every lighting setup
• No cross-platform consistency: Materials looked different in different engines
• Artistic guesswork: "Does this look realistic?" was subjective

✅ PBR Benefits

• Unified workflow: One shader (Principled BSDF) for all materials
• Lighting independence: Materials look correct in any environment
• Predictable results: Adjust roughness, see physics-accurate changes
• Industry standard: Materials transfer between Blender, Unity, Unreal, etc.
• Easier to learn: Follow rules instead of memorizing tricks
• Photorealism achievable: Physics-based = reality-matching

⚖️ PBR Workflow Comparison

✅ PBR Material Checklist

• Energy conserving: Never reflects more light than it receives
• Fresnel accurate: Reflections increase at grazing angles
• Microsurface modeling: Roughness based on microfacet distribution
• Proper albedo ranges: Color values within physically plausible ranges
• Correct metallic behavior: Metals = 1.0, non-metals = 0.0
• IOR accuracy: Refraction follows real material indices
• Consistent across lighting: Looks correct under any illumination

🎮 PBR Across Industries

• Film/VFX: Cycles, Arnold, V-Ray, RenderMan—full PBR path tracing
• Games: Unity, Unreal Engine—real-time PBR approximations
• Product Viz: KeyShot, Solidworks—PBR for CAD visualization
• AR/VR: All platforms use PBR for consistent, believable materials

The universal language: A PBR material created in Substance can be used in Blender, then exported to Unity, and it will look correct in all three! The parameters (metallic, roughness, base color) mean the same thing everywhere.

🧮 PBR Mathematical Foundation

BRDF (Bidirectional Reflectance Distribution Function):

• Mathematical function describing how light bounces off a surface
• Takes into account incoming light direction and viewing direction
• Outputs the amount and color of reflected light
• Principled BSDF implements multiple BRDFs for different surface types

Key equations PBR shaders solve:

• Fresnel equations: Calculate reflection strength at angles
• Microfacet models: Simulate rough surfaces statistically
• Energy conservation: Ensure diffuse + specular ≤ 100%
• Cook-Torrance: Industry-standard specular reflection model

🎯 The Golden Rule of PBR

A surface can never reflect more light energy than it receives.

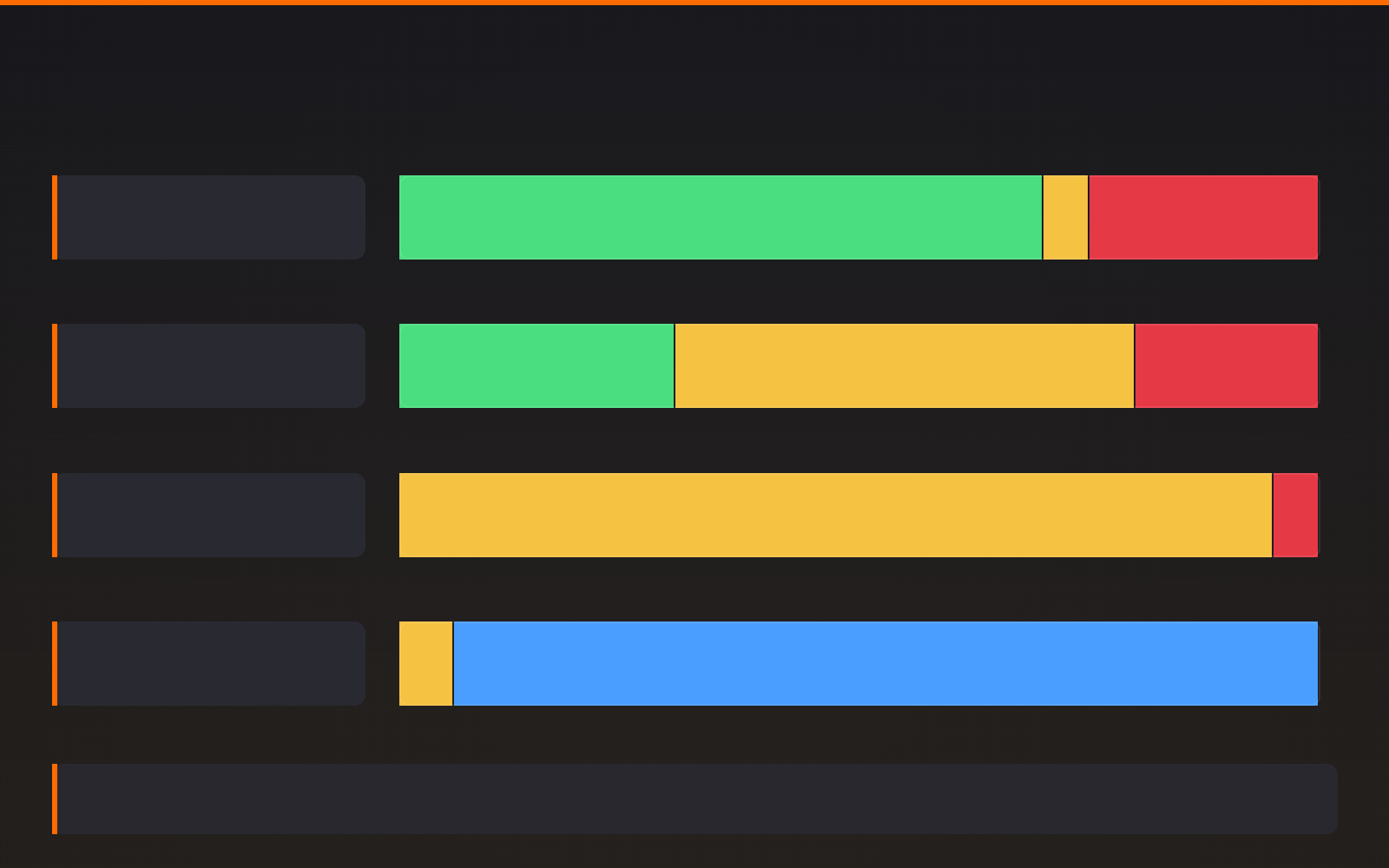

📊 Energy Budget Examples

Rough Matte Surface (Roughness = 0.9):

• Diffuse reflection: 70%
• Specular reflection: 5%
• Absorption: 25%
• Total: 100% ✅

Glossy Plastic (Roughness = 0.2):

• Diffuse reflection: 30%
• Specular reflection: 50%
• Absorption: 20%
• Total: 100% ✅

Polished Metal (Metallic = 1.0, Roughness = 0.1):

• Diffuse reflection: 0% (metals don't have diffuse!)
• Specular reflection: 95%
• Absorption: 5%
• Total: 100% ✅

Clear Glass (Transmission = 1.0):

• Specular reflection: 4-8% (Fresnel reflection)
• Transmission: 92-96%
• Absorption: 0% (for perfectly clear glass)
• Total: 100% ✅

🛡️ Automatic Energy Conservation

• Diffuse/Specular Balance: As specular reflection increases (lower roughness), diffuse automatically decreases. The shader calculates this balance.
• Metallic Override: When Metallic = 1.0, diffuse reflection is set to zero automatically. Metals only have specular reflection.
• Transmission Compensation: When Transmission increases, both diffuse and specular reflection decrease proportionally.
• Fresnel Integration: Reflection strength automatically adjusts based on viewing angle, maintaining energy conservation at all angles.

⚠️ Energy Conservation Violations

Problem 1: Adding Light That Doesn't Exist

• Wrong: Using Add shader to combine multiple reflection layers without proper balancing
• Result: Surface reflects 150% of incoming light—physically impossible!
• Right: Use Mix Shader with proper factor, or stick with Principled BSDF

Problem 2: Emission Without Energy Source

• Wrong: Adding emission just to make something brighter without considering it's generating light
• Result: Objects mysteriously glow without energy source
• Right: Use emission only for actual light sources (screens, LEDs, bulbs)

Problem 3: Combining Incompatible Shaders

• Wrong: Mixing Glossy + Diffuse at 100% each
• Result: 200% energy output
• Right: Mix with factors that add to 1.0, or use Principled BSDF which handles this

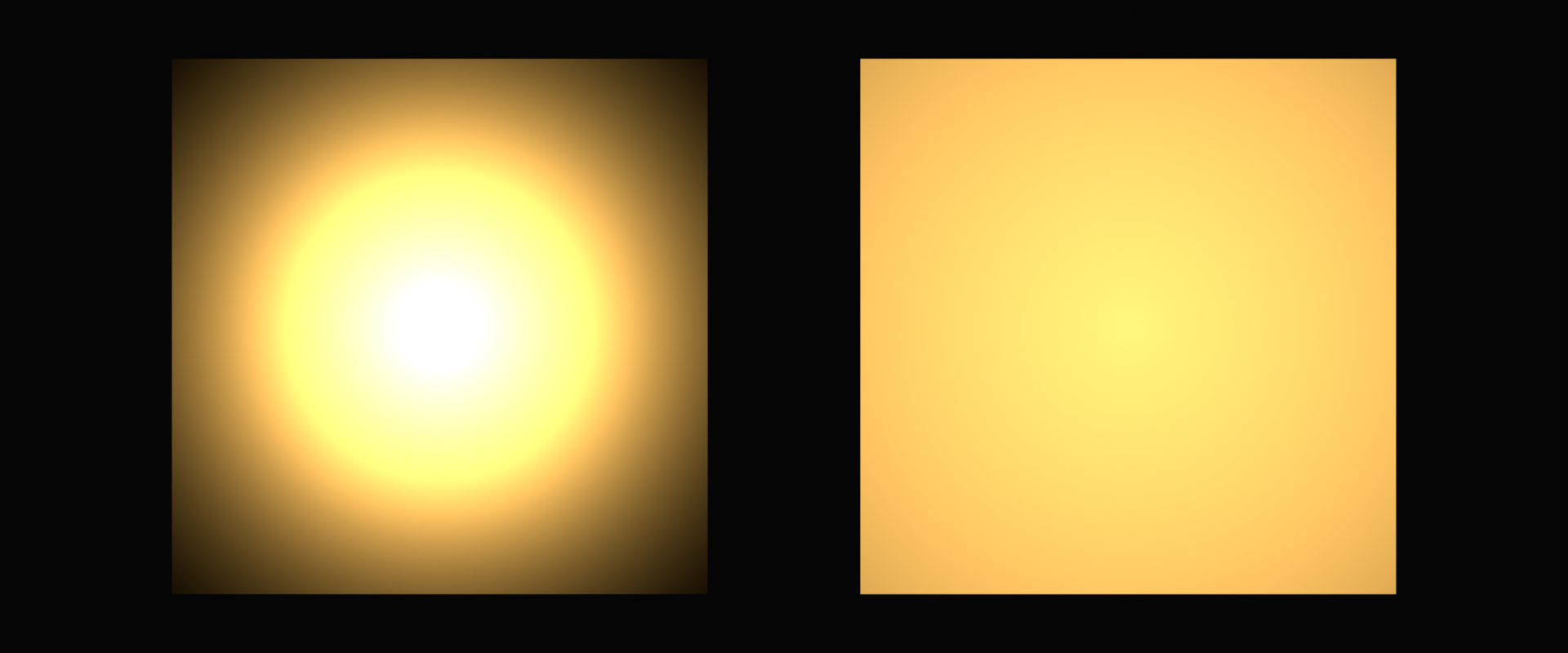

🔬 Roughness and Energy Distribution

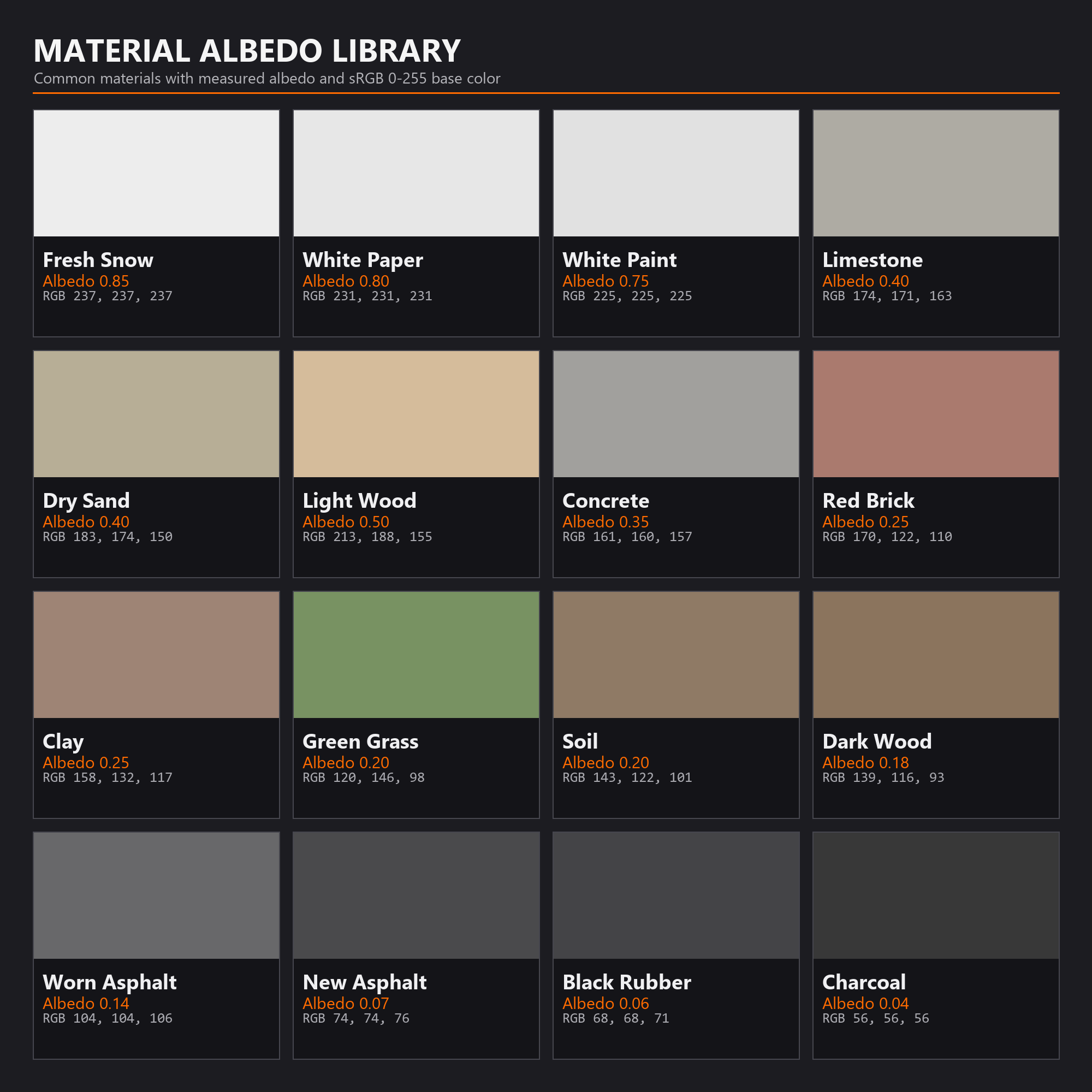

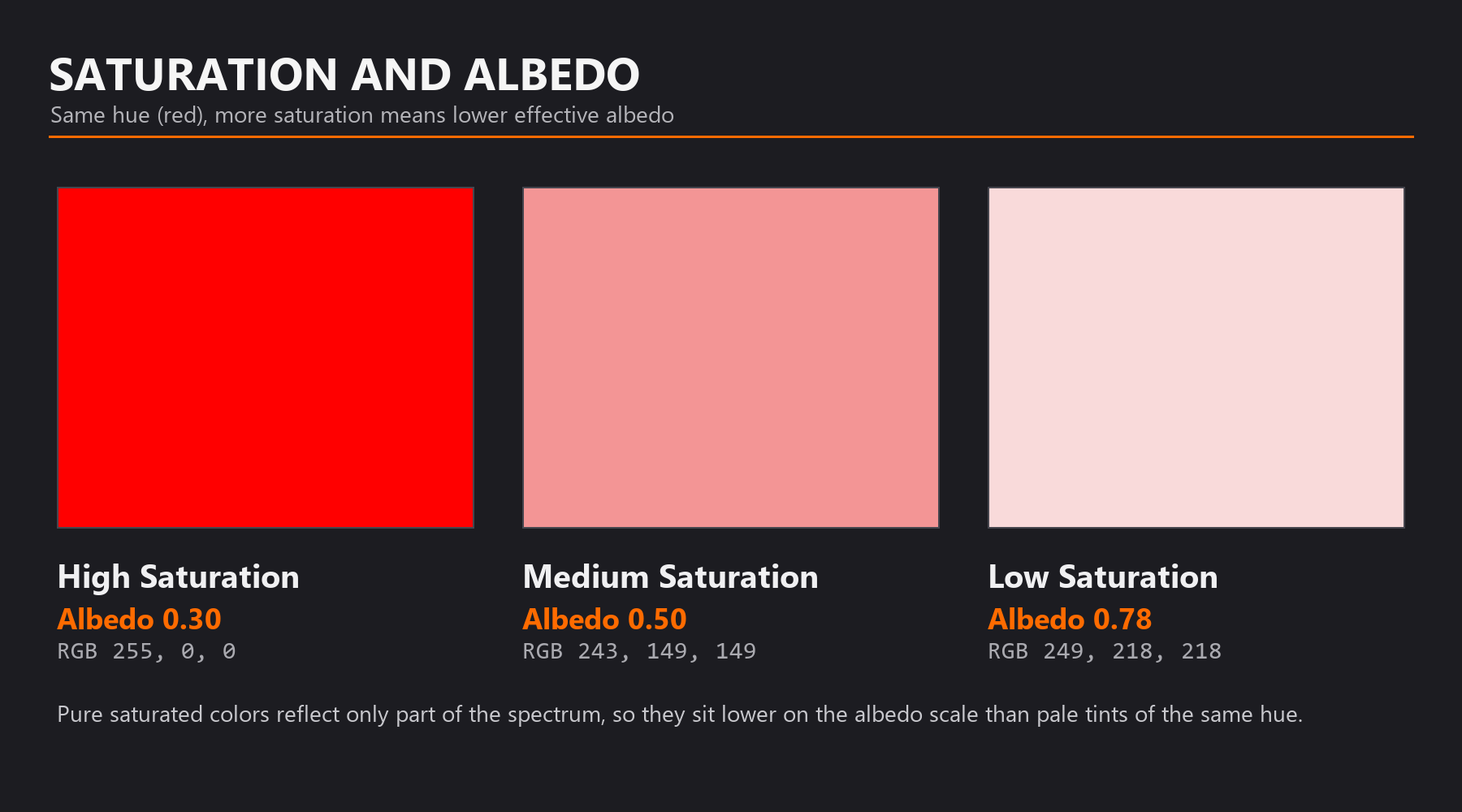

🎨 Albedo Energy Implications

• White (RGB 1.0, 1.0, 1.0): Reflects ~100% of diffuse light, absorbs ~0%
• Medium Gray (RGB 0.5, 0.5, 0.5): Reflects ~50%, absorbs ~50%
• Black (RGB 0.0, 0.0, 0.0): Reflects 0%, absorbs 100%
• Pure Red (RGB 1.0, 0.0, 0.0): Reflects 100% of red light, absorbs 100% of green/blue

Critical rule: Albedo can never be brighter than 1.0 (pure white) because that would mean reflecting more than 100% of light!

✅ Practical Benefits

1. Materials work in any lighting:
   • Energy-conserving materials respond correctly to bright sun, dim interior, or neon lights
   • No need to adjust materials for different scenes
2. Predictable render results:
   • Know exactly how bright surfaces will be
   • No mysterious "too bright" or "too dark" surprises
3. Faster iteration:
   • Don't waste time fighting non-physical materials
   • Parameters work intuitively
4. Professional quality:
   • Energy-conserving materials look "right" even to untrained eyes
   • Matches expectations from photos and real life
5. Cross-platform consistency:
   • Materials export correctly to game engines
   • Same material works in Eevee and Cycles

🧪 Energy Conservation Tests

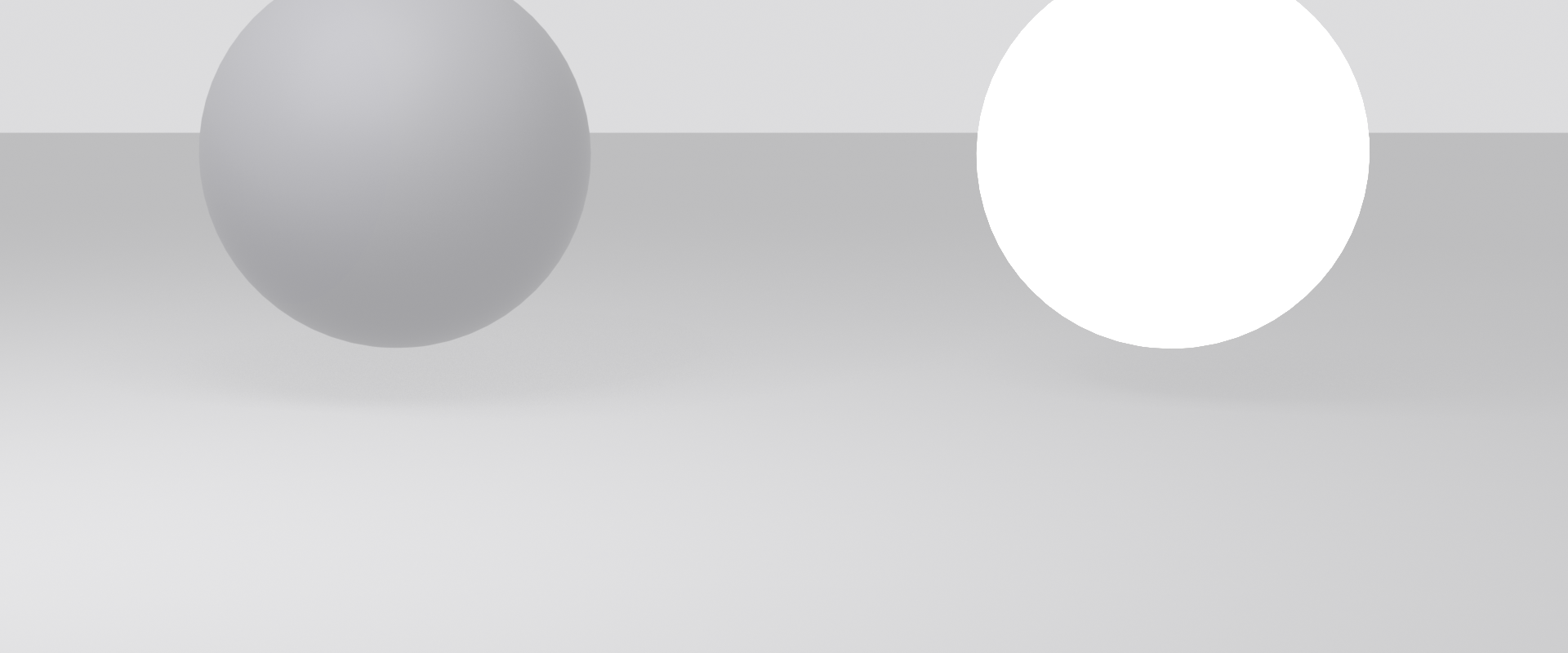

1. The White Room Test:
   • Place material in pure white environment (HDRI)
   • With pure white lighting, material should never appear brighter than white
   • If material glows brighter than the environment, energy conservation is violated

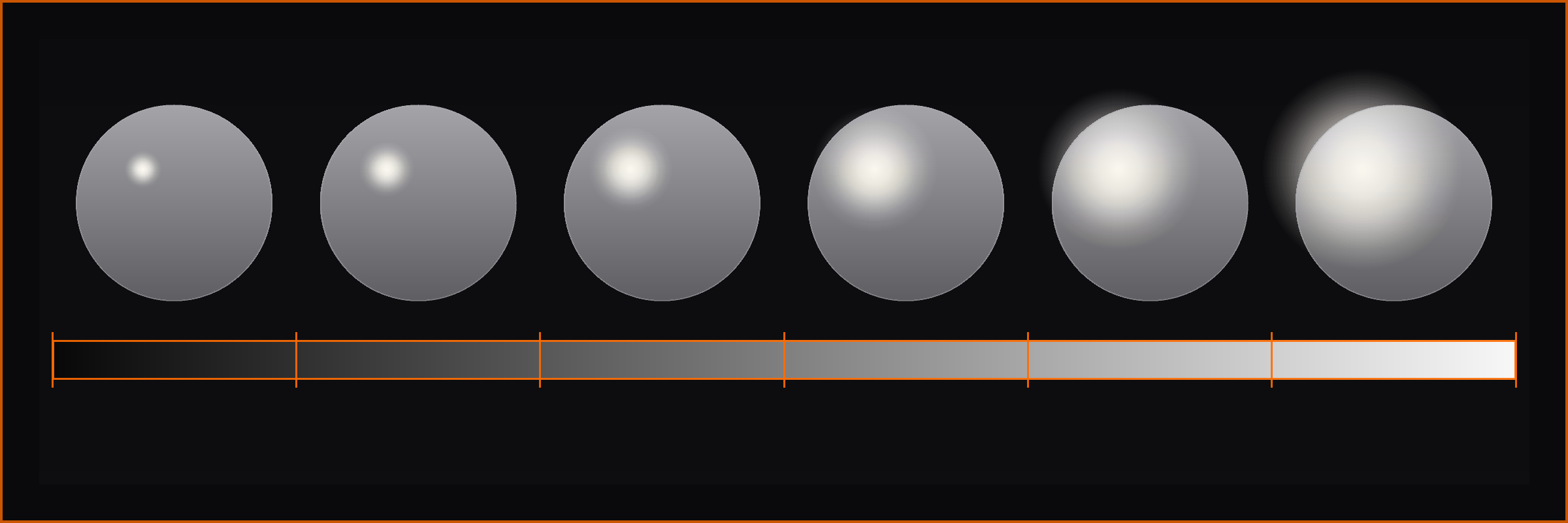

2. The Roughness Sweep:
   • Animate roughness from 0.0 to 1.0
   • Overall brightness should stay relatively constant
   • Only the distribution of light should change
3. The Metallic Check:
   • Set material to white base color
   • Set Metallic to 1.0
   • Material should reflect environment without visible base color
   • No diffuse component should be visible

🔄 Multiple Scattering

What happens:

• Light enters material through microscopic valleys
• Bounces between microfacets multiple times
• Eventually exits in a different direction
• Each bounce absorbs some energy (based on albedo)

Why it matters:

• Without multiple scattering, rough dark materials appear too dark
• Cycles renderer simulates this automatically
• Eevee approximates it (less accurate but faster)
• Energy is still conserved—just distributed more realistically

✅ Best Practices

• Trust Principled BSDF: It handles energy conservation automatically—don't second-guess it
• Avoid mixing legacy shaders: Glossy + Diffuse combinations can break conservation if not done carefully
• Use emission thoughtfully: Only for actual light-emitting objects
• Keep albedo in physical ranges: 0.02 to 0.95 for most materials
• Test materials in neutral lighting: White environment reveals energy issues clearly
• When in doubt, measure real materials: Use reference photos and color pickers

🎯 The Fresnel Principle

All materials become more reflective at grazing angles (when viewed from the side).

Even matte, non-metallic surfaces show mirror-like reflections when viewed at shallow angles!

👁️ Real-World Fresnel Examples

• Glass windows: Look straight through—almost no reflection. Look at an angle—strong mirror-like reflection
• Car paint: Top of the hood (viewed perpendicular) shows color. Side of the car (viewed at angle) shows strong reflections

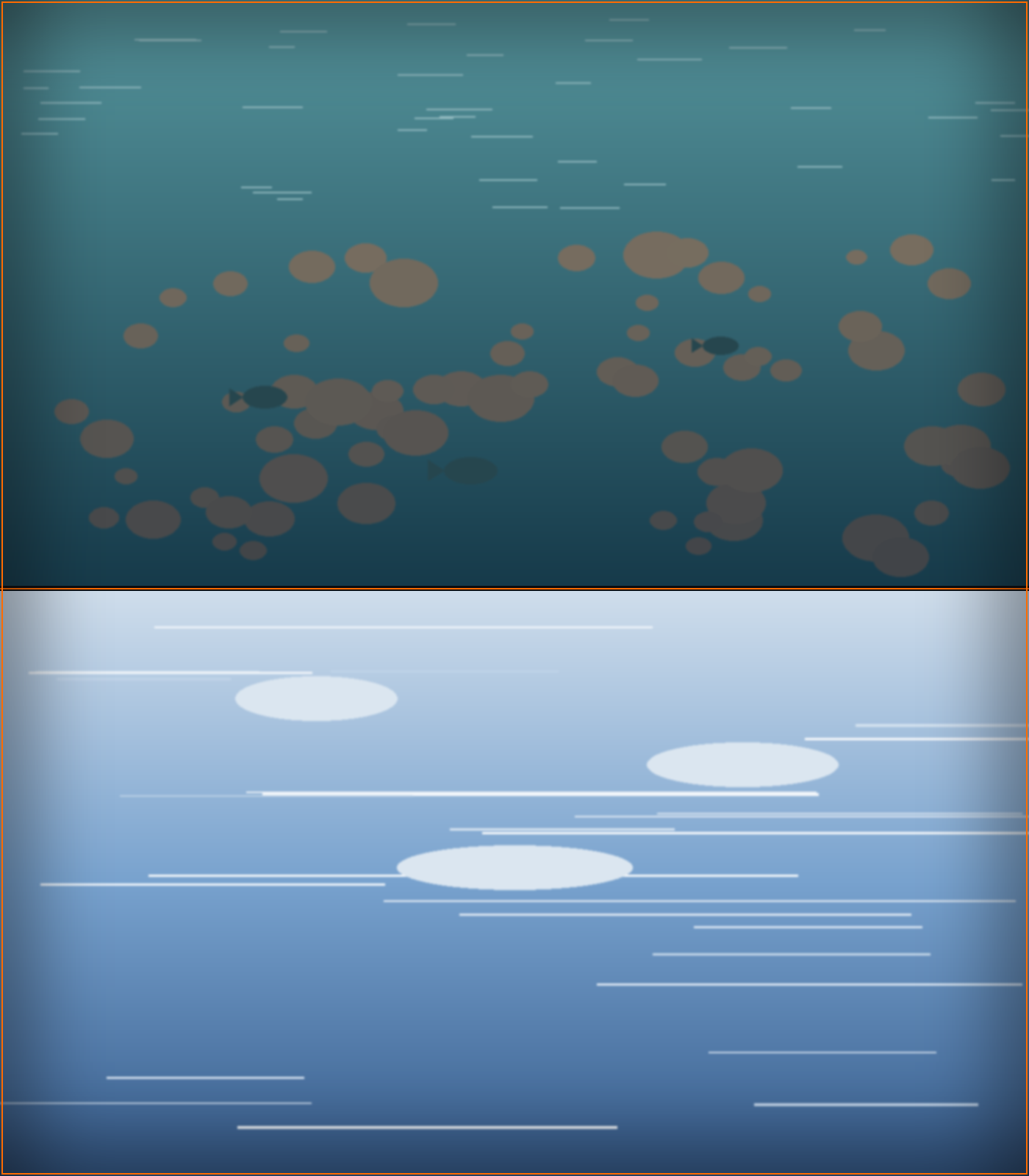

• Water surfaces: Looking down into a pool vs. looking across a lake
• Your phone screen: Straight on—see the display. At an angle—see reflections of lights
• Polished wood floor: Under your feet—matte wood color. Distance across room—glossy reflections
• Even skin: Your face straight on vs. the edge of your cheek in a mirror—edge is more reflective!

🔬 Why Fresnel Happens

Perpendicular viewing (head-on):

• Light rays hit surface nearly vertically
• Light can easily penetrate the material
• Small percentage reflects back
• Most light enters the material (transmission or scattering)

Grazing angle viewing (from side):

• Light rays hit surface at shallow angle
• Light has difficulty penetrating—like skipping a stone on water
• Large percentage reflects back
• Less light enters the material

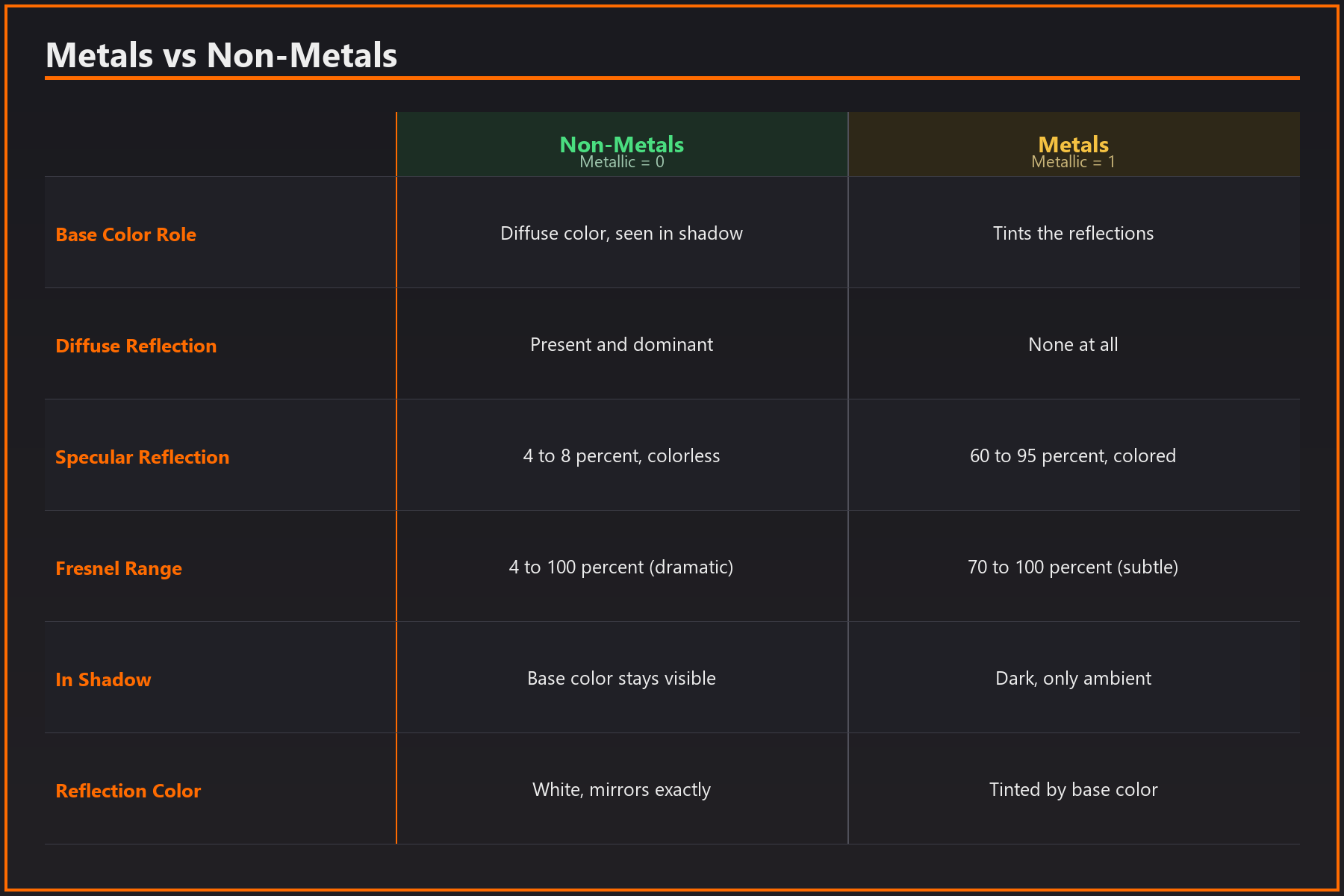

⚖️ Dielectric vs. Conductor Fresnel

🧮 Fresnel Mathematics (Simplified)

The Schlick Approximation:

Most PBR shaders use Schlick's approximation of Fresnel equations:

• F = F₀ + (1 - F₀) × (1 - cos θ)⁵
• F₀ = Base reflectivity at perpendicular angle (depends on IOR)
• θ = Angle between view direction and surface normal
• (1 - cos θ)⁵ = The Fresnel curve—how quickly reflectivity increases

What this means practically:

• F₀ for non-metals: ~0.04 (4% reflection straight on)

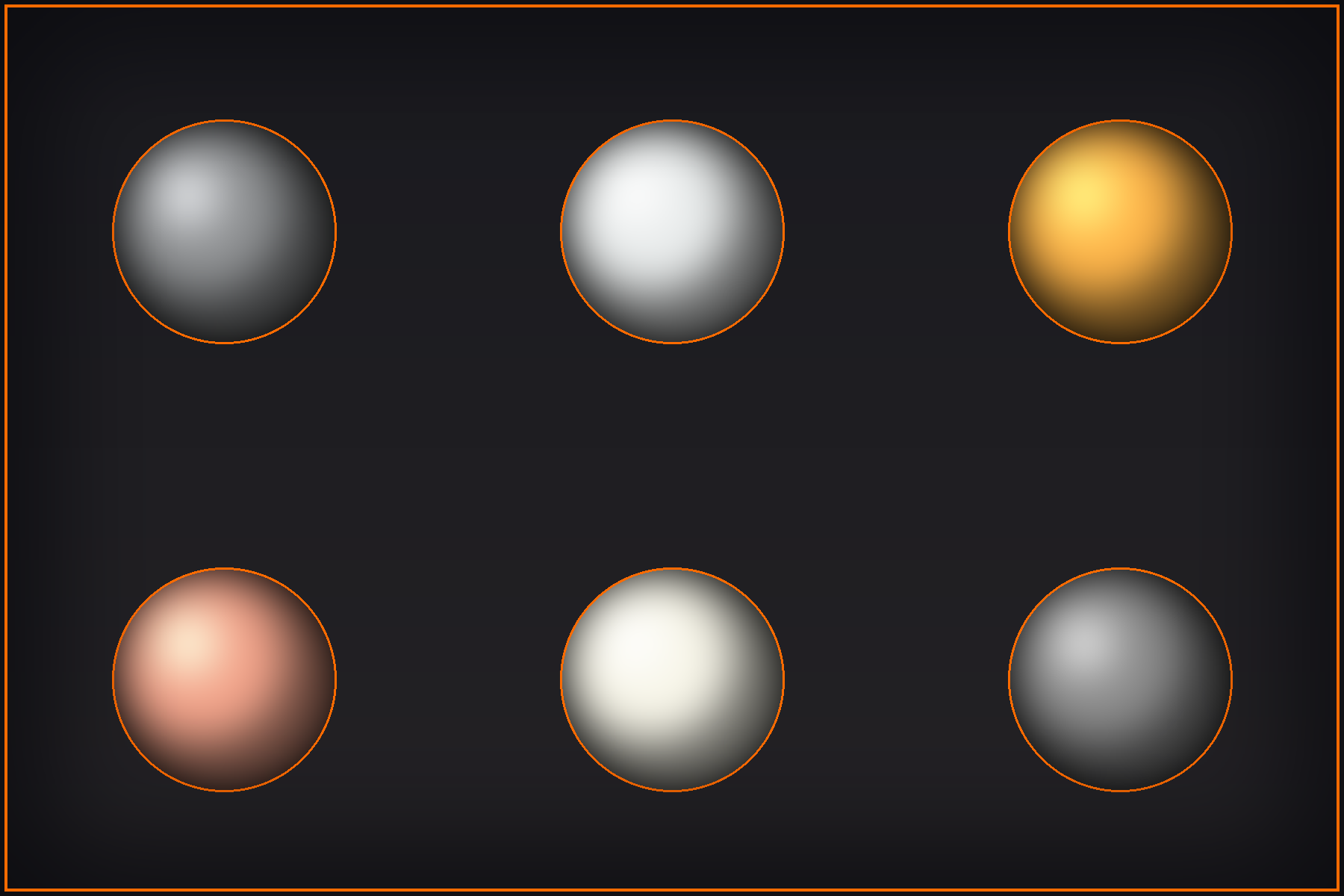

• F₀ for metals: ~0.7-0.95 (70-95% depending on metal type)
• At 90° (grazing angle), F approaches 1.0 (100%) for all materials

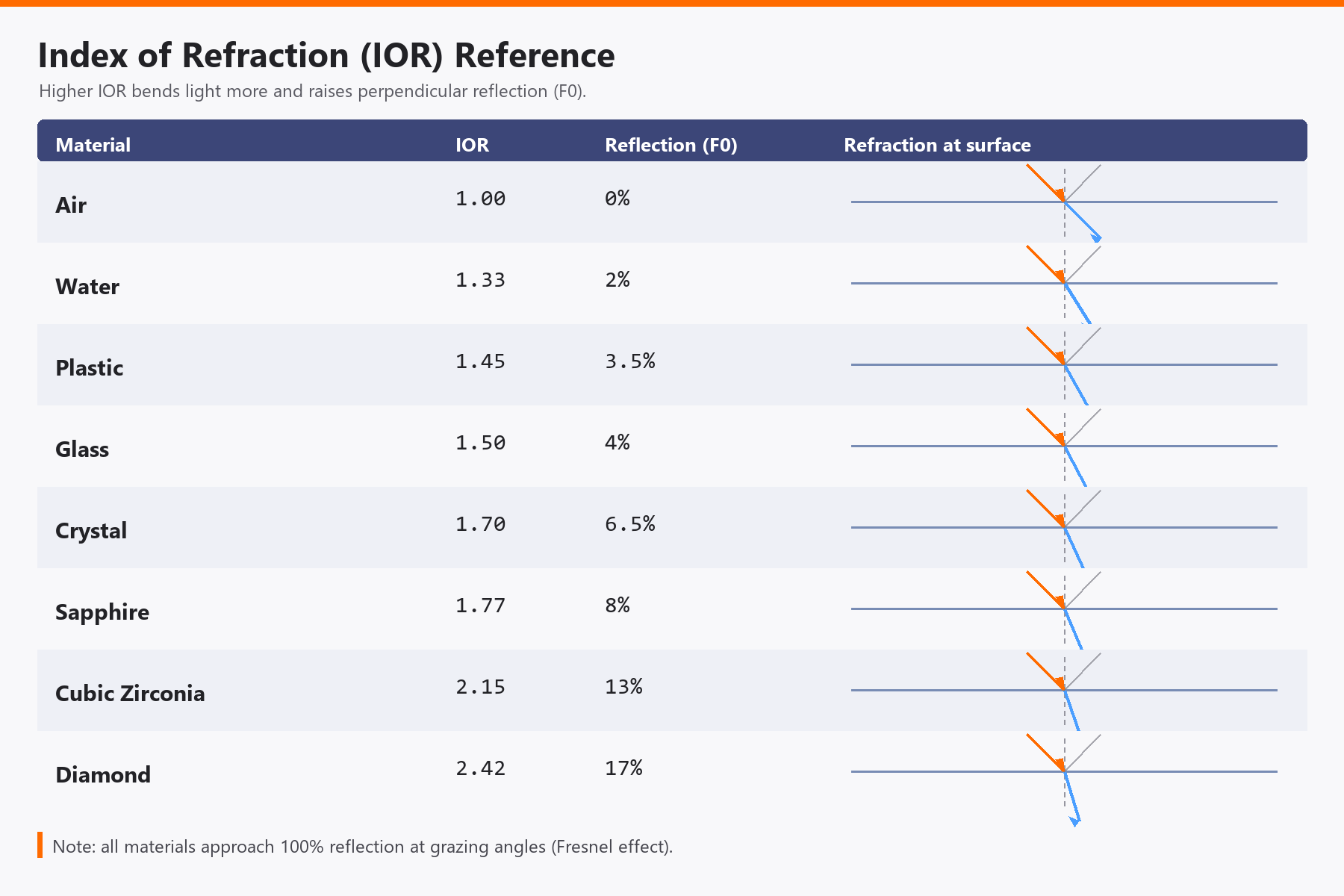

🔍 IOR and Reflection Strength

✨ Specular Parameter Explained

• Default: 0.5 → Corresponds to IOR ~1.5 (typical glass/plastic)
• Range: 0.0 to 1.0 → Scales the Fresnel effect strength
• Specular = 0.0: No Fresnel (unrealistic, but useful for special effects)
• Specular = 0.5: Standard dielectric Fresnel (most materials)
• Specular = 1.0: Stronger Fresnel (high IOR materials like diamond)

Critical note: For 99% of materials, leave Specular at 0.5! It's rare to need adjustment.

👁️ Fresnel Impact on Realism

With correct Fresnel:

• Edge highlights appear naturally on all materials
• Materials have visual "structure" and depth
• Viewing angle creates natural variation
• Matches real-world expectations from photos
• Materials integrate naturally with environment

Without Fresnel (or incorrect Fresnel):

• Materials look "flat" and CG-like
• No natural edge highlights
• Appears the same from all viewing angles
• Uncanny valley effect—"something's off"
• Looks like video game graphics from 2000s

✅ Fresnel Observation Exercise

1. Find a glossy object near you (phone, mug, book cover, anything with slight shine)
2. Look at it straight on: Notice you can see the surface color/texture clearly
3. Tilt it slowly: Watch how reflections become stronger as you view at shallower angle
4. At extreme angle: Surface becomes almost mirror-like, color disappears
5. Repeat with different objects: Notice same pattern on matte surfaces (just less obvious)
6. Try with transparent materials: Glass, water—see how transparency decreases at angles

Insight gained: Once you see Fresnel in real life, you'll never miss it in 3D renders. Your eye is trained!

🔄 Fresnel × Roughness = Material Character

Smooth Surface (Low Roughness):

• Fresnel creates sharp, distinct edge highlights
• Clear transition from base color to reflection
• Edge highlight is bright and concentrated
• Classic "rim lighting" effect

Rough Surface (High Roughness):

• Fresnel still occurs but spread out
• Edge highlight is soft and gradual
• Transition from base color to reflection is blurred
• Less dramatic but still present

🔍 Fresnel in Glass

Looking straight through glass (perpendicular):

• ~4% reflection (you see slight reflection of yourself)
• ~96% transmission (you see through clearly)
• Transparency dominates

Looking at glass edge (grazing angle):

• ~100% reflection (perfect mirror)
• ~0% transmission (can't see through at all)
• Reflection dominates completely

Why this matters: Realistic glass must transition from mostly transparent (straight on) to completely reflective (edges). Principled BSDF handles this automatically when you set Transmission = 1.0!

⚠️ Fresnel Pitfalls to Avoid

Mistake 1: Disabling Fresnel completely

• Problem: Setting Specular to 0.0 disables Fresnel
• Result: Materials look flat and fake at all angles
• Fix: Keep Specular at default 0.5 for most materials

Mistake 2: Confusing Specular with shininess

• Problem: Adjusting Specular trying to make material shinier/rougher
• Result: Incorrect Fresnel strength breaks realism
• Fix: Use Roughness for shininess, not Specular

Mistake 3: Forgetting Fresnel exists on matte materials

• Problem: Assuming only shiny materials have edge highlights
• Result: Missing subtle realism in rough materials
• Fix: Remember: ALL materials have Fresnel, just less visible on rough surfaces

Mistake 4: Not testing materials from multiple angles

• Problem: Only viewing material straight-on during creation
• Result: Missing edge cases where Fresnel looks wrong
• Fix: Always rotate around material, check grazing angles

✅ Professional Fresnel Workflow

• Trust the defaults: Principled BSDF's Specular 0.5 is correct for 99% of materials
• Let Fresnel work automatically: Don't try to manually control edge highlights
• Use proper IOR values: For transparent materials, correct IOR ensures correct Fresnel
• Test from all angles: Rotate camera around material to verify Fresnel looks natural
• Study reference photos: Notice how edge highlights appear on real materials
• Metallic materials: Fresnel is less dramatic but still present—don't disable it
• Rough materials: Fresnel is subtle but important for realism

🔍 The Microfacet Model

Core concept:

• Every surface is made of millions of tiny mirror-like facets
• Each facet is perfectly smooth and reflective
• Facets are oriented in different directions based on roughness
• The distribution of facet orientations determines overall appearance

📊 Microfacet Distribution by Roughness

Roughness = 0.0 (Perfect Mirror):

• All microfacets aligned in same direction
• Light reflects in single coherent direction
• Result: Sharp, mirror-like reflection
• Example: Perfect mirror, chrome in vacuum

Roughness = 0.2 (Glossy):

• Microfacets mostly aligned, slight variation
• Light reflects in narrow cone of directions
• Result: Soft but visible specular highlight
• Example: Glossy plastic, polished wood, new car paint

Roughness = 0.5 (Satin):

• Microfacets have moderate orientation variation
• Light reflects in wide cone of directions
• Result: Very soft, spread-out highlight
• Example: Satin fabric, brushed metal, eggshell paint

Roughness = 1.0 (Completely Matte):

• Microfacets randomly oriented in all directions
• Light scatters equally in all directions (diffuse)
• Result: No visible specular highlight
• Example: Unfinished clay, chalk, very rough stone

📐 Normal Distribution Function

What it does:

• Describes the statistical distribution of microfacet orientations
• Takes roughness parameter as input
• Outputs probability of finding a microfacet at any given angle

Common NDF models:

• GGX (default in Blender): Long-tailed distribution, realistic highlights
• Beckmann: Older model, sharper falloff
• Phong: Very old, not physically accurate (legacy only)

Why GGX is best: It produces long "tails" in specular highlights that match real-world materials better. Most PBR systems use GGX now.

🌓 Masking and Shadowing Effects

Shadowing:

• Some microfacets are in shadow cast by neighboring facets
• Light can't reach these shadowed facets
• Reduces overall brightness of rough surfaces
• More pronounced with rough surfaces and grazing angles

Masking:

• Some reflected light is blocked by neighboring microfacets
• Light reflects but can't escape the surface structure
• Also reduces brightness, especially at grazing angles
• Works together with shadowing

Physical accuracy: Principled BSDF accounts for both automatically! This is why rough materials at grazing angles appear darker than you might expect—physics!

🔍 Roughness vs. Blur

Simple blur (incorrect model):

• Take sharp reflection and apply gaussian blur
• Same brightness, just spread out
• Energy stays constant
• Doesn't account for masking/shadowing

Microfacet model (correct):

• Millions of tiny reflections in different directions
• Energy distributed based on microfacet orientation
• Masking and shadowing reduce total brightness
• Fresnel effect applies to each microfacet individually
• Physically accurate light behavior

⚡ Roughness Energy Distribution

Key principle: Total reflected energy remains constant regardless of roughness—only the distribution changes!

The tradeoff: Smooth surfaces = bright but small. Rough surfaces = dim but large. Same total energy!

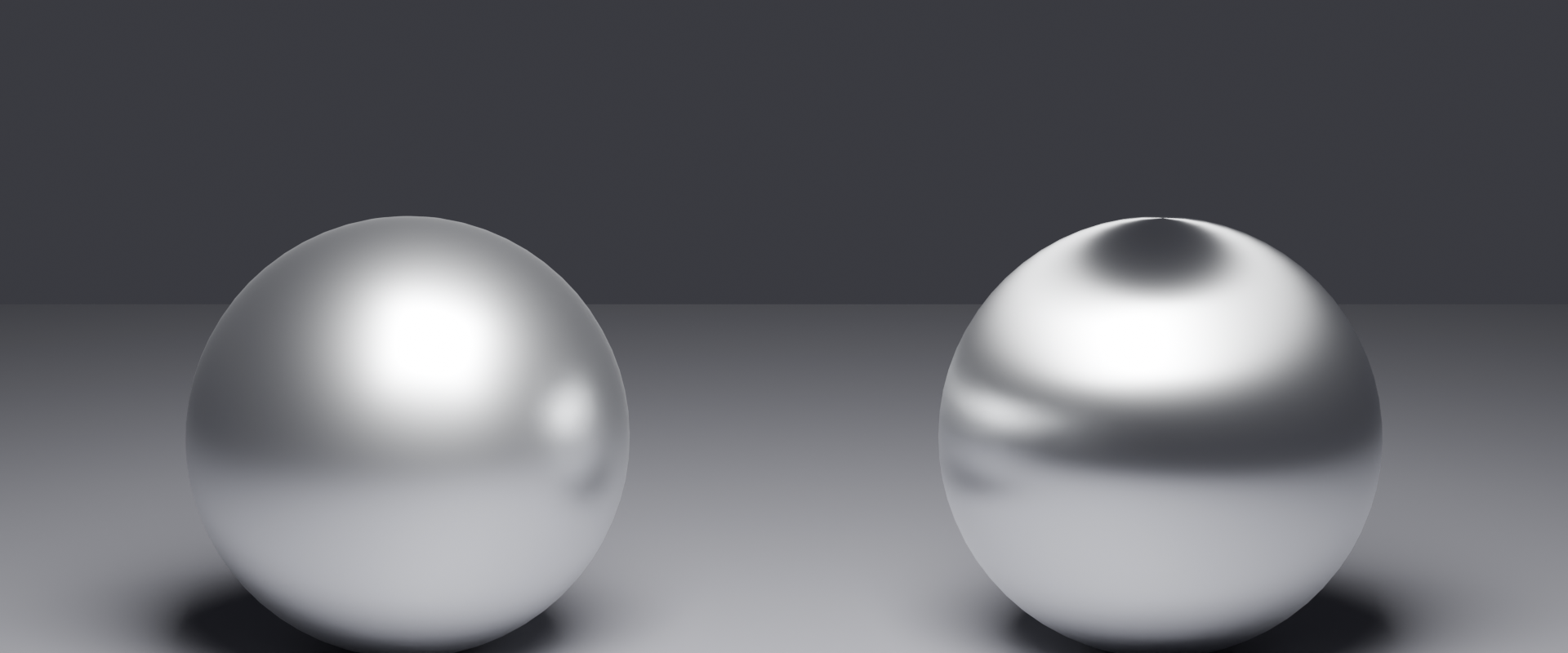

↔️ Anisotropic Materials

What is anisotropy?

• Microfacets aligned in one direction more than others
• Created by directional manufacturing processes
• Produces elongated, streaked highlights

Real-world examples:

• Brushed metal: Sanding/brushing creates directional micro-grooves
• Hair/fur: Strands have directional structure
• Vinyl records: Circular grooves create circular highlights
• Satin fabric: Woven threads create directional sheen
• CDs/DVDs: Microscopic tracks create rainbow patterns

In Principled BSDF:

• Anisotropic parameter: 0.0 = isotropic, 1.0 = fully directional
• Anisotropic Rotation: Controls direction of the effect (0-1 = 0-360°)
• Creates elliptical instead of circular highlights

🎯 Practical Roughness Reference

🗺️ Roughness Mapping

Concept:

• Grayscale image where brightness = roughness value
• Black (0.0) = smooth areas
• White (1.0) = rough areas
• Gray values = intermediate roughness

Real-world applications:

• Worn surfaces: Edges and high-traffic areas more polished (darker) than recessed areas
• Dirty materials: Dirt/grime in crevices increases roughness
• Weathered metal: Rust patches are rougher than bare metal
• Painted wood: Paint cracks expose rougher wood underneath

Workflow: We'll cover roughness mapping in detail in Lessons 12-14 when we dive into texturing!

⚠️ Roughness Pitfalls

Mistake 1: Everything is too glossy (Roughness too low)

• Problem: Beginners often default to Roughness 0.1-0.2 for everything
• Result: Scene looks like shiny plastic toy world
• Fix: Most real materials are Roughness 0.3-0.7. Be generous with roughness!

Mistake 2: Everything is perfectly uniform

• Problem: Using single roughness value across entire object
• Result: Looks CG and fake—real materials have variation
• Fix: Add slight roughness variation (we'll learn with textures)

Mistake 3: Confusing Roughness with other parameters

• Problem: Adjusting Metallic or Specular thinking it controls shininess
• Result: Wrong material type or incorrect Fresnel
• Fix: Roughness controls shininess. Metallic controls metal vs. non-metal. Specular controls Fresnel strength.

Mistake 4: Not testing under different lighting

• Problem: Material looks right in one HDRI but wrong in others
• Result: Roughness might be incorrect if it only works in specific lighting
• Fix: Test materials in multiple HDRIs (bright, dim, colored)

⚡ Roughness Performance Considerations

Smooth surfaces (Low roughness):

• Faster to render
• Light bounces in predictable directions
• Less noise in renders
• Fewer samples needed for clean result

Rough surfaces (High roughness):

• Slower to render
• Light scatters in many directions (requires more ray samples)
• More noise in renders
• More samples needed for clean result

Optimization tip: If render times are long, check if you have unnecessarily rough materials. Sometimes Roughness 0.6 looks identical to 0.8 but renders faster!

✅ Professional Roughness Workflow

• Start with reference: Look at photos of real materials to judge roughness accurately
• Use middle range as baseline: Start at Roughness 0.4-0.5 and adjust from there
• Avoid extremes: Very few real materials are 0.0 or 1.0—stay in 0.1-0.9 range
• Add variation: Real materials have roughness variation (we'll learn with texture mapping)
• Test multiple angles: Rotate around object to see how highlights behave
• Test multiple lighting: Try bright and dim HDRIs to verify roughness looks correct
• Match material category: Metals typically 0.1-0.5, plastics 0.2-0.6, fabrics 0.6-0.9
• Observe edge highlights: Sharp = too smooth, invisible = too rough

⚛️ The Atomic Distinction

Conductors (Metals):

• Electrons move freely throughout the material
• Free electrons interact with incoming light waves
• Light energy absorbed and re-emitted almost immediately
• Result: Strong reflection, no light penetration
• Examples: Iron, gold, silver, copper, aluminum, chrome

Insulators/Dielectrics (Non-Metals):

• Electrons bound tightly to atoms
• Light can penetrate into the material
• Some light reflected (specular), some scattered inside (diffuse)
• Result: Weak surface reflection, strong internal scattering
• Examples: Plastic, wood, glass, stone, ceramic, fabric, skin

🎯 The Binary Rule

⚠️ The 0.5 Metallic Trap

Common beginner mistake: "I want my material halfway between shiny and matte, so I'll use Metallic 0.5"

Why it's wrong:

• Creates physically impossible light behavior
• Fresnel effect becomes incorrect
• Material looks "off" but you can't identify why
• Doesn't render correctly in different lighting

The correct approach: Use Metallic 0.0 and adjust Roughness to control shininess!

👁️ Visual Characteristics Comparison

🎨 Metal Color Science

Why metals look colored:

• Metals absorb some wavelengths more than others
• Reflected light is tinted by what ISN'T absorbed
• This tint colors the reflection itself
• The "color" you see is actually colored reflection!

Common metal colors (Base Color values):

• Iron/Steel: RGB (0.56, 0.57, 0.58) - Slight blue-gray
• Aluminum: RGB (0.91, 0.92, 0.92) - Bright silvery
• Gold: RGB (1.0, 0.71, 0.29) - Yellow-orange
• Copper: RGB (0.95, 0.64, 0.54) - Reddish-brown
• Silver: RGB (0.97, 0.96, 0.91) - Slightly warm white
• Chrome: RGB (0.55, 0.55, 0.55) - Neutral gray

Key insight: Most metals are near-grayscale with subtle tints. Only gold and copper have strong color!

🌈 Edge Tint Phenomenon

What happens:

• At perpendicular viewing: Metal shows its characteristic color
• At grazing angles: Reflections become more white/neutral
• This is the opposite of the typical Fresnel effect!

Why it happens:

• Complex quantum mechanics of electron behavior
• Different wavelengths reflect differently at angles
• Creates subtle color shift at edges

In practice: Principled BSDF handles this automatically when Metallic = 1.0. You don't need to do anything—just know it's contributing to realism!

🚫 No Diffuse for Metals

What this means:

• In completely dark environment (no lights), metal appears black
• Metal "color" only visible through reflections
• Rough metals still have no diffuse—just blurry colored reflections
• This is why metal in shadow looks nearly black

Common confusion:

• ❌ "My gold material is black in shadows, something's wrong!"
• ✅ "That's correct! Metals only reflect. Add light or HDRI to see the gold color."

🛡️ Surface Coatings and Oxidation

Oxidized metals:

• Rust on iron, patina on copper, tarnish on silver
• Oxide layer is NOT metallic
• Use Metallic = 0.0 for oxidized areas
• Mix metallic and non-metallic zones with texture maps

Painted metals:

• Car bodies, appliances, tools with paint coating
• Paint is non-metallic, even though metal is underneath
• Use Metallic = 0.0 (you're seeing paint, not metal)
• Exception: Metallic car paint (special pigments) uses Metallic workflow differently

Anodized metals:

• Aluminum with colored oxide layer
• Dielectric coating on metal base
• Use Metallic = 0.0 (coating is non-metallic)

✅ Metallic Decision Tree

Ask: "Am I looking at bare, pure metal?"

• YES → Metallic = 1.0
  • Examples: Chrome trim, gold jewelry, polished steel, aluminum foil
• NO → Metallic = 0.0
  • Painted surfaces (even if metal underneath)
  • Oxidized/rusted metal
  • Anodized aluminum
  • Plastic, wood, fabric, glass, stone—everything non-metallic

Edge cases requiring texture mixing:

• Worn paint exposing metal underneath → Mix Metallic 0.0 and 1.0 with mask
• Rust patches on metal → Mix Metallic 1.0 (clean) and 0.0 (rust) with mask
• Scratches through coating → Reveal metallic areas in scratches

⚠️ Metallic Pitfalls

Mistake 1: Using Metallic = 0.5 for "semi-shiny" look

• Wrong thinking: "Metallic slider controls shininess"
• Result: Physically impossible material
• Fix: Use Metallic = 0.0 and adjust Roughness for shininess

Mistake 2: Setting painted metal to Metallic = 1.0

• Problem: "It's a metal car, so Metallic = 1.0, right?"
• Result: Wrong look—you see paint, not bare metal
• Fix: Use Metallic = 0.0 (paint is non-metallic)

Mistake 3: Expecting metals to show color in shadow

• Problem: "My gold is black in shadows!"
• Not a bug: Metals have no diffuse—this is correct behavior
• Solution: Add ambient lighting or HDRI for metal to reflect

Mistake 4: Using wrong Base Color for metals

• Problem: Bright saturated colors for "cool looking" metal
• Result: Unrealistic metal that doesn't exist in nature
• Fix: Use measured RGB values for real metals (see chart above)

Mistake 5: Forgetting about oxidation layers

• Problem: Setting rust/patina to Metallic = 1.0
• Result: Oxidation looks wrong
• Fix: Oxide/rust is non-metallic (Metallic = 0.0)

🗺️ Metallic Maps

How they work:

• Black (0.0) = Non-metallic areas
• White (1.0) = Metallic areas
• No gray values—pure binary masking

Use cases:

• Worn paint: White where paint is scratched off (revealing metal)
• Rust patterns: Black in rusted areas, white in clean metal
• Dirt accumulation: Black where dirt covers metal surface
• Dual-material objects: White for metal parts, black for plastic parts

Best practice: Even in metallic maps, avoid gray values. Use black or white to maintain physical accuracy!

🧪 Metallic Material Tests

1. The Dark Environment Test:
   • Place material in completely dark scene (no HDRI, no lights)
   • Metals should appear nearly black
   • Non-metals might show subtle diffuse color
2. The Base Color Check:
   • View material straight-on in neutral lighting
   • Non-metals: Base Color clearly visible
   • Metals: Base Color tints reflections, not visible as diffuse
3. The Edge Highlight Test:
   • Look at grazing angle highlights
   • Non-metals: Dramatic increase from ~4% to 100% reflection
   • Metals: Subtle increase from ~70% to 100% reflection
4. The Reflection Tint Test:
   • Check if reflections are colored
   • Non-metals: White/colorless reflections (mirrors environment exactly)
   • Metals: Tinted reflections (gold = yellow tint, copper = orange tint)

✅ Professional Metallic Workflow

• Binary thinking: Always ask "metal or not-metal?" first
• Use proper metal colors: Reference measured RGB values for real metals
• Remember paint is non-metallic: Don't confuse substrate with surface
• Provide adequate lighting: Metals need something to reflect
• Consider oxidation: Weathered metals are often mixed metallic/non-metallic
• Test in multiple environments: Good metals look correct in various HDRIs
• Avoid artistic liberties: Stick to 0.0 or 1.0 unless deliberately creating sci-fi materials
• Learn from references: Study photos of real metals to understand behavior

📊 Albedo Definition

• Albedo 0.0 (0%): Surface absorbs all light, reflects nothing (pure black)
• Albedo 0.5 (50%): Surface reflects half the light, absorbs half
• Albedo 1.0 (100%): Surface reflects all light, absorbs nothing (pure white)

In Blender: The Base Color RGB values directly represent albedo. RGB (0.5, 0.5, 0.5) means 50% reflectance for all wavelengths (medium gray).

🌍 Real-World Albedo Ranges

🎯 The 30-80 Rule

Most common materials fall between albedo 0.30 and 0.80 (RGB 77-204 in sRGB)

If you're creating generic materials without reference, starting in this range ensures physical plausibility!

🎨 Color vs. Albedo

Color (Hue):

• Which wavelengths of light are reflected
• Red reflects red light, absorbs blue/green
• Determines the perceptual "color"

Albedo (Value/Brightness):

• How much total light is reflected (all wavelengths combined)
• Determines how bright/dark the material appears
• Can have red color with low albedo (dark red) or high albedo (light red)

Example:

• Dark red leather: Red hue, albedo ~0.15 (dark)
• Pink plastic: Red hue, albedo ~0.70 (bright)
• Same color family, very different albedo values!

📸 Extracting Albedo from Photos

1. Find reference with even lighting:
   • Overcast day or studio lighting works best
   • Avoid harsh shadows or direct sunlight
   • Look for diffuse lighting conditions
2. Sample the "average" area:
   • Not highlights (specular reflection)
   • Not deep shadows (no light reaching surface)
   • The middle-tone diffuse areas
3. Use color picker in image editor:
   • Pick RGB values from that area
   • These values approximate the albedo
4. Verify it's in plausible range:
   • Dark materials: 0.02-0.30
   • Medium materials: 0.30-0.60
   • Light materials: 0.60-0.90

⚠️ Photo Reference Warning

Photos aren't perfect albedo maps because:

• Lighting affects perceived brightness
• Camera exposure changes values
• Post-processing alters colors
• Shadows and highlights contaminate samples

Solution: Use photos as starting point, then adjust to known physical ranges. Trust measurements over photos!

🌈 Saturation Impact on Albedo

Why saturated colors are darker:

• Pure red RGB (1.0, 0.0, 0.0) reflects ONLY red light (~33% of visible spectrum)
• Absorbs all blue and green light (~67% of visible spectrum)
• Effective albedo: Only ~0.30-0.35 despite maximum red channel!

Practical examples:

• Bright red toy: RGB (0.8, 0.05, 0.05) → Albedo ~0.30
• Bright blue plastic: RGB (0.05, 0.3, 0.9) → Albedo ~0.40
• Vibrant green: RGB (0.1, 0.7, 0.1) → Albedo ~0.30

Desaturation increases albedo:

• Pastel pink RGB (0.9, 0.7, 0.7) → Albedo ~0.77
• Light blue RGB (0.7, 0.8, 0.9) → Albedo ~0.80
• Pale yellow RGB (0.9, 0.9, 0.7) → Albedo ~0.83

📚 Material Albedo Reference Library

⚙️ Metal "Albedo" (Base Color)

For metals, Base Color determines reflection tint, not albedo:

• Metals have no diffuse, so traditional albedo doesn't apply
• Base Color tints the specular reflection
• Most metals: Near grayscale (0.5-0.95 across RGB)
• Exception: Gold (1.0, 0.71, 0.29) and Copper (0.95, 0.64, 0.54) have strong color

Metal Base Color ranges:

• Iron/Steel: 0.56 - 0.58 (medium gray)
• Aluminum: 0.91 - 0.92 (bright gray)
• Silver: 0.95 - 0.97 (near-white)
• These aren't "albedo" in the diffuse sense—they're reflectance values!

🎚️ sRGB vs. Linear Color Space

sRGB (what you see on screen):

• Gamma-corrected color space for displays
• RGB 128 appears "middle gray" to human eye
• Perceptually uniform spacing

Linear (what Blender calculates with):

• Physically accurate light calculations
• RGB 0.5 is actual 50% light energy (appears darker than expected)
• Mathematically linear

Why this matters:

• Blender's color picker shows sRGB values for ease of use
• Internally converts to linear for calculations
• You can use sRGB values from this lesson directly in Blender
• Just know that "0.5" in Blender's color picker ≈ 0.22 actual light energy

🧪 Albedo Verification Tests

1. The White Room Test:
   • Place material in pure white HDRI environment
   • Material should never appear brighter than the environment
   • If it does, albedo is too high (energy conservation violation)
2. The Grayscale Comparison:
   • Create grayscale version of your Base Color
   • Check if brightness matches expected material type
   • Too bright/dark? Adjust value while keeping hue
3. The Reference Match:
   • Place your material next to reference photo
   • In same lighting, brightness should match
   • If significantly different, albedo is wrong
4. The Category Check:
   • Compare to known albedo ranges for material type
   • Wood should be 0.15-0.60, concrete 0.25-0.50, etc.
   • Wildly outside range? Double-check your values

⚠️ Albedo Pitfalls

Mistake 1: Using pure black (0, 0, 0) or pure white (255, 255, 255)

• Problem: These values don't exist in nature
• Result: Materials look CG and unrealistic
• Fix: Darkest: RGB 5-10, Lightest: RGB 240-245

Mistake 2: All colors too saturated and dark

• Problem: Using fully saturated colors (R=255, G=0, B=0)
• Result: Materials appear too dark and fake
• Fix: Desaturate slightly for more realistic brightness

Mistake 3: Ignoring material-specific ranges

• Problem: "I want light wood, so I'll use RGB 250, 250, 220"
• Result: Wood that's impossibly bright
• Fix: Light wood should be RGB 140-180, not near-white

Mistake 4: Not adjusting for saturation

• Problem: Bright saturated red (255, 0, 0) expecting it to look bright
• Result: Material appears darker than expected
• Understanding: Saturation reduces effective albedo—this is correct physics!

Mistake 5: Copying values directly from photos without validation

• Problem: Photos have lighting baked in
• Result: Albedo values include shadows/highlights
• Fix: Use photos as reference but validate against known ranges

✅ Professional Albedo Workflow

• Start with measured values: Use material reference charts when available
• Stay within physical ranges: 0.02 (darkest) to 0.90 (lightest) for most materials
• Follow the 30-80 rule: Most common materials fall in this range
• Desaturate for brightness: Want light colors? Reduce saturation, not just increase value
• Validate in neutral lighting: Test materials in white HDRI to check albedo accuracy
• Reference real materials: Take photos with color checker for accurate values
• Consider context: Material in bright sun looks different than in shadow—albedo stays constant
• Document your values: Keep a library of accurate albedo values for reuse

🕯️ Subsurface Scattering Explained

What it simulates:

• Light enters material instead of reflecting immediately
• Scatters randomly inside material
• Some light absorbed, some exits nearby
• Creates soft, translucent appearance

Real-world materials with SSS:

• Skin: Blood vessels scatter red light under surface
• Wax: Light penetrates and glows from within
• Milk: Opaque but light scatters through it
• Marble: Slightly translucent, depth appearance
• Leaves: Backlit leaves show venation and glow
• Jade: Semi-translucent stone with internal glow

🎛️ Subsurface Controls

Subsurface (0.0 - 1.0):

• Strength of subsurface scattering effect
• 0.0 = No SSS (normal surface)
• 1.0 = Maximum SSS (fully translucent)
• Typical values: 0.1-0.5 for subtle effects

Subsurface Radius (RGB):

• How far light travels inside material (per color channel)
• Measured in Blender units
• Red channel = Red light scatter distance
• Green channel = Green light scatter distance
• Blue channel = Blue light scatter distance
• Different values create color-specific depth effects

Subsurface Color:

• Tint of the internal scattering
• Often similar to Base Color but can differ
• Skin: Slightly reddish (blood)
• Wax: Creamy yellow
• Marble: White with subtle color variations

📋 SSS Material Recipes

Human Skin:

• Subsurface: 0.15-0.3
• Subsurface Radius: RGB (1.0, 0.2, 0.1) - Red scatters more
• Subsurface Color: RGB (0.8, 0.5, 0.4) - Reddish
• Base Color: Skin tone
• Roughness: 0.4-0.5

Candle Wax:

• Subsurface: 0.5-0.8
• Subsurface Radius: RGB (2.0, 2.0, 2.0) - Even scattering
• Subsurface Color: RGB (0.95, 0.9, 0.8) - Warm white
• Base Color: Creamy white/yellow
• Roughness: 0.3-0.4

Marble:

• Subsurface: 0.1-0.3
• Subsurface Radius: RGB (0.5, 0.5, 0.5) - Subtle
• Subsurface Color: White or slightly tinted
• Base Color: White with veining texture
• Roughness: 0.2-0.4

⚠️ SSS Performance Warning

Subsurface scattering is computationally expensive, especially in Cycles:

• Significantly increases render times
• More samples needed for clean results
• Use only when truly necessary for material believability
• Avoid on background objects where effect isn't visible

🔍 Advanced Transmission

Transmission + Roughness interaction:

• Roughness 0.0: Clear glass (sharp refraction)
• Roughness 0.3-0.6: Frosted glass (diffused transmission)
• Roughness 0.8+: Milky/translucent (barely see through)

Combining transmission with other effects:

• + Subsurface: Creates materials like jade (both transmit and scatter)
• + Base Color: Tinted glass (colored transparency)
• + Emission: Glowing transparent materials

🌊 IOR Physical Accuracy

What IOR controls:

• How much light bends when entering/exiting material
• Strength of Fresnel reflections
• Caustics patterns (focused light through transparent objects)

Accurate IOR values are critical for:

• Realistic glass appearance
• Proper reflection/transmission balance
• Correct light bending effects
• Believable caustics

Extended IOR reference:

• Vacuum/Air: 1.0 (reference point)
• Ice: 1.31
• Water (20°C): 1.333
• Alcohol: 1.36
• Plexiglass: 1.49
• Crown Glass: 1.52
• Crystal: 1.54
• Flint Glass: 1.6-1.7
• Sapphire: 1.77
• Cubic Zirconia: 2.15
• Diamond: 2.42

✨ Sheen for Textiles

What sheen simulates:

• Soft, diffuse reflection at grazing angles
• Created by microfibers catching light
• Distinct from specular highlights (more diffuse)
• Gives fabric materials their characteristic look

Sheen parameters:

• Sheen (0.0-1.0): Strength of effect
• Sheen Tint (0.0-1.0):
  • 0.0 = White sheen
  • 1.0 = Sheen matches Base Color
  • 0.5 = Blend between

Typical values:

• Cotton fabric: Sheen 0.3-0.5, Tint 0.5
• Velvet: Sheen 0.8-1.0, Tint 0.8
• Satin: Sheen 0.4-0.6, Tint 0.3 (more white sheen)

🚗 Clearcoat Deep Dive

Physical model:

• Base layer (controlled by main parameters)
• Transparent glossy coat on top
• Two independent roughness values
• Realistic multi-layer appearance

Clearcoat parameters:

• Clearcoat (0.0-1.0): Strength/presence of coat layer
• Clearcoat Roughness (0.0-1.0): How glossy the coat is
• Clearcoat Normal: Optional separate normal map for coat texture

Advanced applications:

• Car paint: Colored base (rough) + glossy clearcoat
• Lacquered wood: Wood grain (rougher) + glossy finish
• Coated metal: Brushed metal + protective clear layer
• Nail polish: Colored base + high-gloss top coat
• Carbon fiber: Woven pattern + glossy resin coat

✅ Clearcoat Pro Tip

The power of clearcoat comes from two independent roughness values:

• Base layer: Roughness 0.6 (satin finish)
• Clearcoat: Clearcoat Roughness 0.1 (glossy)
• Result: Visible base texture with glossy highlights—just like real car paint!

↔️ Anisotropy In Depth

What creates anisotropy in real materials:

• Directional surface structure (micro-grooves)
• Manufacturing processes (brushing, extrusion, machining)
• Aligned fibers or crystals

Anisotropic parameters:

• Anisotropic (0.0-1.0):
  • 0.0 = Isotropic (normal circular highlights)
  • 1.0 = Fully anisotropic (elongated highlights)
• Anisotropic Rotation (0.0-1.0):
  • Direction of the effect (0-360° mapped to 0.0-1.0)
  • Controls orientation of stretched highlights

Common anisotropic materials:

• Brushed metal: Anisotropic 0.7-0.9
• Hair/fur: Anisotropic 0.8-1.0
• Vinyl records: Circular grooves (animated rotation)
• CDs/DVDs: Radial pattern
• Satin fabric: Anisotropic 0.4-0.6

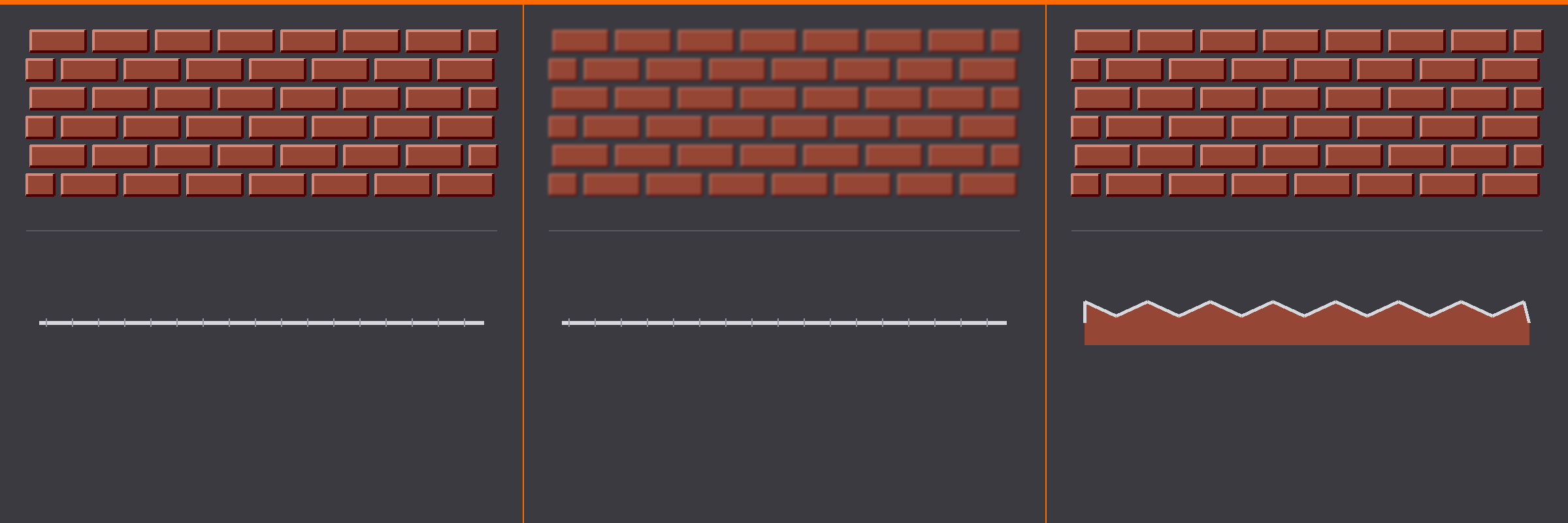

🗺️ Surface Detail Methods

Normal Map:

• RGB texture encoding surface normal directions
• Very detailed, no performance cost
• Doesn't change actual geometry
• Best for: Fine detail (scratches, pores, fabric weave)

Bump Map:

• Grayscale height information
• Converted to normal map by shader
• Simpler to create than normal maps
• Best for: Simple height variations

Displacement:

• Actually moves geometry based on texture
• Creates real depth and silhouette changes
• Requires subdivision for detail
• Performance cost (more geometry)
• Best for: Large height changes that affect silhouette

Usage guideline:

• Fine detail: Normal maps
• Medium detail: Bump maps
• Dramatic height: Displacement
• Often combine: Displacement for large features + Normal for fine detail

💡 Advanced Emission Techniques

Emission as light source:

• High strength (10-50+): Acts as actual scene light
• Illuminates nearby objects
• Creates realistic light-emitting materials

Emission for effects:

• Screens/monitors: Strength 3-5, realistic display glow
• Neon signs: Strength 10-20, bright colored glow
• Lava/molten metal: Strength 5-15, heated material glow
• Bioluminescence: Strength 1-3, organic glow
• Energy fields: Animated strength, sci-fi effects

Combining emission with texture:

• Texture controls where emission appears
• Creates patterns: LED panels, circuit boards, glowing runes
• Animate texture for flickering, pulsing effects

👻 Alpha Channel Usage

Alpha vs. Transmission:

• Alpha: Makes surface invisible (cutout, no light interaction)
• Transmission: Makes surface transparent (light passes through)

Alpha use cases:

• Cutout textures: Leaves, chain-link fence, lace
• Particle systems: Fading particles (smoke, dust)
• Decals: Stickers, labels with transparent backgrounds
• Hair/fur cards: Texture-based hair strands

Alpha workflow:

• Usually driven by Image Texture Alpha channel
• Black = invisible, White = visible
• Requires "Blend Mode" set to "Alpha Clip" or "Alpha Blend" in material settings

✅ Advanced Parameter Decision Guide

Use Subsurface when:

• Material is semi-translucent (skin, wax, marble, jade)
• Backlit glow is important to visual
• Material needs soft, organic appearance

Use Sheen when:

• Creating fabric, especially velvet or satin
• Need soft edge glow distinct from specular
• Material has fibrous structure

Use Clearcoat when:

• Material has two distinct layers (paint + clear coat)
• Need rough base with glossy top layer
• Creating car paint, lacquered surfaces, coated materials

Use Anisotropic when:

• Material has directional manufacturing marks
• Creating brushed metal, hair, records
• Highlights should be elongated, not circular

Use Transmission when:

• Material is glass, water, or transparent plastic
• Light physically passes through object
• Refraction effects are important

🎨 Advanced Material Combinations

Frosted glass bottle with liquid:

• Glass: Transmission 1.0, Roughness 0.4 (frosted)
• Liquid inside: Transmission 0.8, Subsurface 0.2, IOR 1.33
• Creates realistic product visualization

Velvet with embroidered pattern:

• Base: Sheen 0.9, Base Color from texture
• + Bump map for fabric weave
• + Roughness variation for worn areas

Holographic sticker:

• Anisotropic 0.8 with animated rotation
• + ColorRamp driven by Fresnel for color shift
• + Alpha for sticker cutout shape

Glowing alien skin:

• Subsurface 0.4 for translucency
• + Emission from texture (veins, patterns)
• + Sheen for organic look
• + Roughness variation

📋 Project Objectives

• Validate existing materials against PBR principles
• Identify and fix common physical inaccuracies
• Enhance materials with advanced parameters where appropriate
• Create test scenes to verify materials under various conditions
• Document improvements with before/after comparisons
• Build confidence in creating physically accurate materials

📝 Create Testing Scene

1. Open your Material Library file from Lesson 10
2. Save a copy: File → Save As → "Material_Library_PBR_Validated.blend"
3. Create testing setup:
   • Add 3 spheres in a row (better than cubes for seeing all angles)
   • Add HDRI lighting: Switch to World Properties
   • Add multiple HDRIs to test (we'll cycle through them)
4. Set up comparison cameras:
   • Straight-on view (perpendicular)
   • 45-degree angle
   • Grazing angle view

✅ PBR Validation Checklist

Energy Conservation:

• ☐ Material doesn't appear brighter than light source
• ☐ In white HDRI, material never exceeds white brightness
• ☐ No suspicious glowing or over-bright areas

Metallic Value:

• ☐ Set to exactly 0.0 or 1.0 (no in-between values)
• ☐ Metals show colored reflections, non-metals show white reflections
• ☐ Metals have no visible diffuse in shadows

Roughness Accuracy:

• ☐ Value matches real-world material reference range
• ☐ Not too extreme (avoid 0.0 and 1.0 unless intentional)
• ☐ Highlights behave correctly at all viewing angles

Albedo/Base Color:

• ☐ Within physical range (0.02-0.95 for most materials)
• ☐ Not pure black (0, 0, 0) or pure white (255, 255, 255)
• ☐ Saturation appropriate for material brightness
• ☐ Matches known albedo values for material type

Fresnel Behavior:

• ☐ Specular parameter at default 0.5 (unless special material)
• ☐ Edge highlights appear correctly at grazing angles
• ☐ Non-metals show dramatic Fresnel increase
• ☐ Metals show subtle Fresnel increase

Lighting Independence:

• ☐ Material looks correct in bright HDRI
• ☐ Material looks correct in dim HDRI
• ☐ Material looks correct in colored lighting
• ☐ No need to adjust parameters for different scenes

✅ Material 1: Chrome Metal - Audit Example

Original values from Lesson 10:

• Base Color: RGB (0.85, 0.85, 0.85)
• Metallic: 1.0 ✓
• Roughness: 0.05 ✓

PBR Validation:

• ☑ Metallic is binary (1.0) - Correct!
• ☑ Metal base color in realistic range - Correct!
• ☑ Very low roughness appropriate for chrome - Correct!
• ☑ Shows no diffuse, only reflections - Correct!

Enhancement opportunity:

• Consider slightly more accurate chrome: RGB (0.55, 0.55, 0.55) for neutral chrome
• Or keep brighter for "polished chrome" look
• Both are physically valid!

Result: Material PASSES ✅

⚠️ Material 2: Glossy Red Plastic - Issues Found

Original values from Lesson 10:

• Base Color: RGB (0.8, 0.05, 0.05)
• Metallic: 0.0 ✓
• Roughness: 0.2 ✓

PBR Validation:

• ☑ Metallic correctly set to 0.0 for plastic
• ☑ Roughness appropriate for glossy plastic
• ⚠️ Base Color might be too saturated - Check albedo!

Albedo analysis:

• RGB (0.8, 0.05, 0.05) is very saturated red
• Effective albedo: ~0.30 (only red light reflected)
• This is actually physically correct for bright red plastic!
• Saturated colors ARE darker—this is right!

Enhancement: Add slight desaturation for slightly brighter look (optional):

• RGB (0.8, 0.1, 0.1) - Slightly less pure, slightly brighter
• Albedo: ~0.33

Result: Material PASSES with optional enhancement ✅

🔧 Common Validation Failures and Fixes

Issue: Base Color is pure black or pure white

• Problem: RGB (0, 0, 0) or RGB (255, 255, 255)
• Fix: Adjust to physical ranges
  • Pure black → RGB (5, 5, 5) or RGB (10, 10, 10)
  • Pure white → RGB (240, 240, 240) or RGB (245, 245, 245)

Issue: Metallic set to intermediate value (e.g., 0.5)

• Problem: Creates physically impossible material
• Fix: Decide: Metal or not-metal?
  • If should be shiny → Metallic 0.0, adjust Roughness
  • If actual metal → Metallic 1.0

Issue: Specular adjusted from default 0.5

• Problem: Incorrect Fresnel behavior
• Fix: Reset Specular to 0.5 (correct for 99% of materials)
• Exception: High-IOR materials like diamond can use 0.6-0.8

Issue: All roughness values too low (everything too shiny)

• Problem: Beginner tendency toward glossy materials
• Fix: Increase roughness to realistic ranges
  • Most plastics: 0.2-0.4
  • Most metals: 0.3-0.5
  • Most organic materials: 0.6-0.9

✅ Enhancement Opportunities

Add Clearcoat to car paint material:

1. Select your car paint material
2. Set Clearcoat: 1.0
3. Set Clearcoat Roughness: 0.1
4. Leave base Roughness at 0.4
5. Result: Realistic two-layer automotive finish!

Add Anisotropic to brushed metal:

1. Select your brushed aluminum material
2. Set Anisotropic: 0.7
3. Set Anisotropic Rotation: 0.0 (horizontal brushing)
4. Result: Directional highlights matching brush direction!

Create enhanced glass with slight tint:

1. Duplicate clear glass material
2. Rename to "Glass_Tinted_Green"
3. Base Color: RGB (0.9, 1.0, 0.9) - Slight green tint
4. Keep Transmission 1.0, Roughness 0.0
5. Result: Subtle bottle-green glass!

🎬 Testing Protocol

1. Test 1: Bright Outdoor HDRI
   • Use forest.exr or outdoor HDRI
   • All materials should look correct and natural
   • Metals should show environment reflections clearly
2. Test 2: Dim Studio HDRI
   • Use studio.exr with reduced strength (0.3)
   • Materials should still be recognizable
   • No materials should mysteriously glow
3. Test 3: Colored Lighting (Sunset HDRI)
   • Use warm, orange-tinted HDRI
   • Materials should take on ambient color correctly
   • No unexpected color shifts
4. Test 4: Multiple Viewing Angles
   • Render from perpendicular view
   • Render from 45-degree angle
   • Render from grazing angle
   • Fresnel effect should be visible and correct

📊 Create Before/After Documentation

1. For each material you modified:
   • Note original parameter values
   • Note validated/corrected parameter values
   • Explain WHY the change was necessary
   • Which PBR principle was violated or improved
2. Create a simple text file: "PBR_Validation_Report.txt"
   • List each material
   • Pass/Fail validation
   • Changes made
   • Lessons learned

✅ New Material Challenges

Challenge 1: Realistic Skin Material

• Base Color: RGB (0.8, 0.6, 0.5) - Skin tone
• Metallic: 0.0 (skin is not metal!)
• Roughness: 0.4-0.5
• Subsurface: 0.2
• Subsurface Radius: RGB (1.0, 0.2, 0.1) - Red scatters more
• Subsurface Color: RGB (0.8, 0.5, 0.4) - Slightly reddish

Challenge 2: Wet Asphalt

• Base Color: RGB (0.08, 0.08, 0.08) - Very dark gray
• Metallic: 0.0
• Roughness: 0.15 (wet = glossy)
• Note: Dry asphalt would be Roughness 0.9

Challenge 3: Copper with Verdigris Patina

• For clean copper areas:
  • Base Color: RGB (0.95, 0.64, 0.54)
  • Metallic: 1.0
  • Roughness: 0.3
• For patina areas:
  • Base Color: RGB (0.3, 0.5, 0.4) - Green-blue
  • Metallic: 0.0 (oxidation is not metallic!)
  • Roughness: 0.7
• Mix with ColorRamp + noise texture

🌟 Professional Material Preview

Create an industry-standard material preview ball:

1. Setup:
   • UV Sphere with high subdivision (smooth)
   • Studio HDRI lighting
   • Neutral gray background
   • Camera at 45-degree angle
2. Render each material on the sphere
3. Create contact sheet of all materials
4. This becomes your material catalog!

Professional studios use standardized sphere renders to preview materials consistently. Now you have your own!

✅ Project Completion Checklist

• ☐ All 10 original materials validated against PBR principles
• ☐ Any violations identified and corrected
• ☐ Albedo values within physical ranges (0.02-0.95)
• ☐ Metallic values are binary (0.0 or 1.0)
• ☐ Roughness values match real-world references
• ☐ Advanced parameters added where appropriate
• ☐ Materials tested in multiple HDRI environments
• ☐ Materials tested from multiple viewing angles
• ☐ Fresnel behavior verified as correct
• ☐ Three new PBR-perfect materials created
• ☐ Documentation created explaining changes
• ☐ File saved as validated material library

🌟 Key Principles Mastered

• PBR Foundation: Materials based on physics, not artistic guesswork
• Energy Conservation: Light never creates more energy than it receives
• Fresnel Effect: All materials become reflective at grazing angles
• Microfacet Theory: Roughness models microscopic surface structure
• Metallic Binary: Materials are conductors (1.0) or insulators (0.0)
• Albedo Ranges: Physical constraints on material brightness (0.02-0.95)
• Advanced Parameters: When and how to use SSS, clearcoat, anisotropy, etc.

🎯 What You Can Now Do

• Validate materials scientifically instead of relying on "looks good"
• Predict material behavior in any lighting condition
• Identify physically incorrect materials immediately
• Create materials that work everywhere—Blender, Unity, Unreal, everywhere
• Communicate with technical artists using industry terminology
• Achieve photorealism by following physical laws
• Debug material issues by understanding underlying principles

🗺️ The Path Forward

Lesson 12: UV Unwrapping Basics

• Control where textures appear on models
• Unwrap complex objects correctly
• Minimize distortion and optimize seams

Lesson 13: Texture Painting

• Paint directly on 3D models
• Create custom albedo, roughness, and normal maps
• Hand-painted details and weathering

Lesson 14: Procedural Textures

• Generate textures mathematically with nodes
• Noise, Voronoi, and pattern creation
• Resolution-independent, infinitely flexible materials

📚 Recommended Deep Dives

• Material databases: Study measured albedo and roughness values for real materials
• Reference photography: Build library of material close-ups with color checkers
• Substance documentation: Excellent PBR theory and workflows
• Disney PBR paper: The 2012 paper that revolutionized PBR workflows
• Physically Based Rendering book: Pharr, Jakob, and Humphreys (advanced)

🎊 The PBR Advantage

Here's what sets you apart now:

• Your materials work in any lighting without adjustment
• Your materials look professional because they follow physics
• Your materials export correctly to game engines and other software
• Your workflow is efficient because you know exactly what to adjust
• Your confidence is high because you understand the "why" behind the "how"

You're not just making materials—you're simulating reality. And reality, when properly simulated, is always believable!
